Universal Joint - Rear Drive Shaft - to Engine - 19-1008 - All Balls

23,31 EUR shipping costs Product code: ALB.19-1008.4

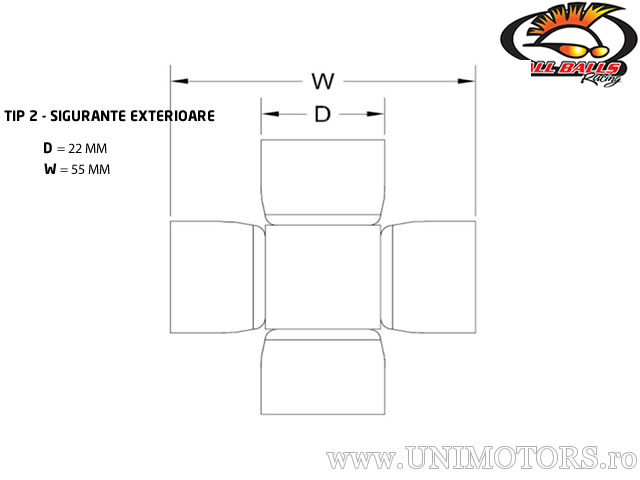

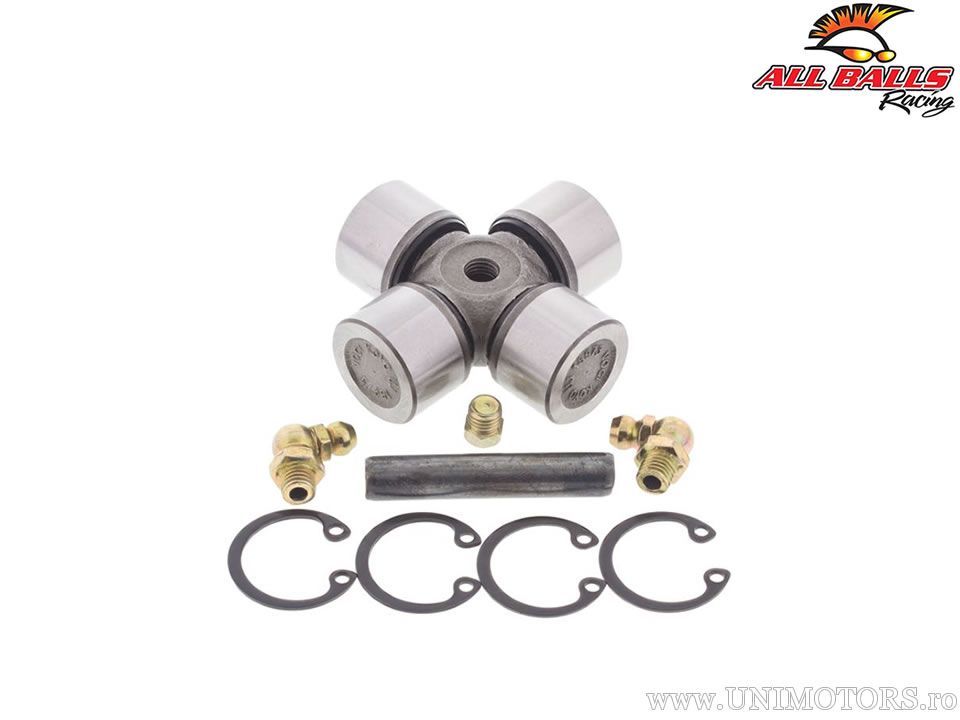

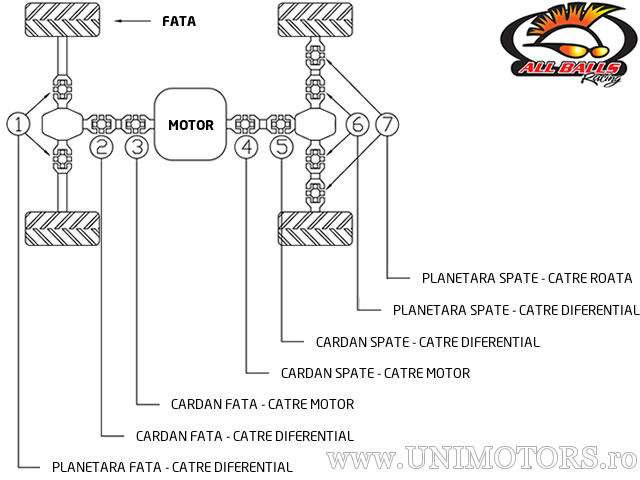

Cardan joint from All Balls - rear driveshaft mounting part - towards the engine (pos. 4 in image no. 3) with dimensions 22 x 55 mm type 2 - external snap rings.

The manufacturer All Balls is a supplier of consumables and parts for motorcycles and ATVs with an excellent proven quality/price ratio. The cardan joints from All Balls are made from SCM-415 cold-forged steel and are factory greased with Lithium Complex 3 grease resistant to high temperatures.

Note for 6x6 traction vehicles:
- the center driveshaft uses the same cardan joints as those of the rear driveshaft (pos. 4 and 5 - image 3)
- the center differentials use the same cardan joints as those of the rear differentials (pos. 6 and 7 - image 3)

Among the most important applications are: Can-Am Outlander 330 (2004-2005) / Outlander 400 (2003-2004) / Outlander 400 STD 2x4 05 / Outlander 400 STD 4x4 (2005-2015) / Outlander 400 XT 4x4 (2004-2014) / Outlander MAX 400 EFI/STD/XT (2015) / Outlander MAX 400 STD 4x4 (2005-2014) / Outlander MAX 400 XT 4x4 (2006-2014) / Quest 500 (2002-2003) / Traxter 500 (1999-2005) / Polaris Magnum 330 2x4 (2003-2005) / Magnum 330 4x4 05 / Magnum 330 4x4 AA AB AC (2003-2004) / Magnum 330 4x4 FB (2003-2004) / Magnum 500 4x4 HDS (2003).

Complete application list can be found below.
