Piston Kit - Yamaha YZ85 ('02-'18) (47.45-49.45mm) - Wossner

from 76,65 EUR shipping costs Product code: WOS.8104DX

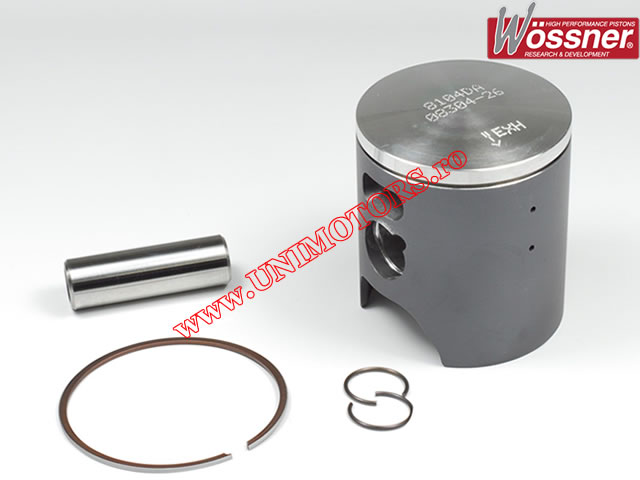

Forged piston kit Wossner for Yamaha YZ 85 2T manufactured between 2002-2018.

The kit includes piston, ring, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 47.50mm
- thermal clearance: 0.05mm
- pin-to-cap distance (measured from the center of the pin): 26.00mm
- piston pin dimensions: 14x10x38.5mm.

Available piston sizes:
- A (47.45 mm)
- B (47.46 mm)
- C (47.47 mm)
