Piston Kit - Yamaha TDR125 / TZR125 R ('92-'02) (55.94-57.94mm) - Wossner

from 98,91 EUR shipping costs Product code: WOS.8006DX

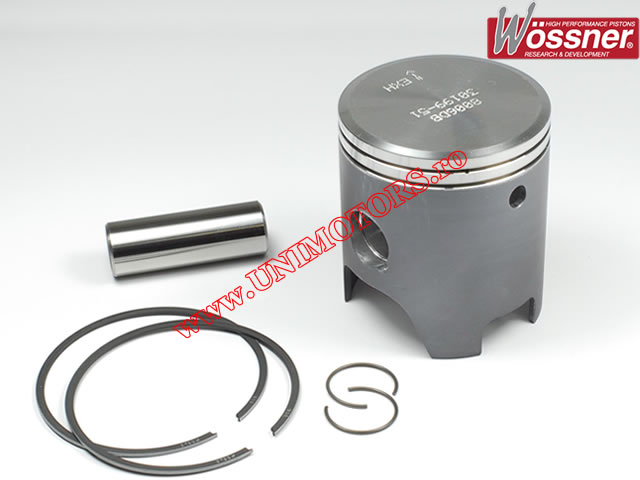

Forged piston kit Wossner for Yamaha TDR 125 / TZR 125 R manufactured between 1992-2002.

The kit includes piston, rings, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 56.00mm
- thermal clearance: 0.06mm
- pin-to-cap distance (measured from the center of the pin): 29.90mm
- piston pin dimensions: 16x10x45mm.

Available piston sizes:
- A (55.94 mm)
- B (55.95 mm)
- C (55.96 mm)
- +0.50 mm (56.44 mm)
- +1.00 mm (56.94 mm)
- +1.50 mm (57.44 mm)
- +2.00 mm (57.94 mm)
