Piston Kit - Suzuki RM 250 ('89-'95) - 250 2-stroke - ProX

from 128,73 EUR shipping costs Product code: PROX.01.3310.x

Please select the piston size from the box above.

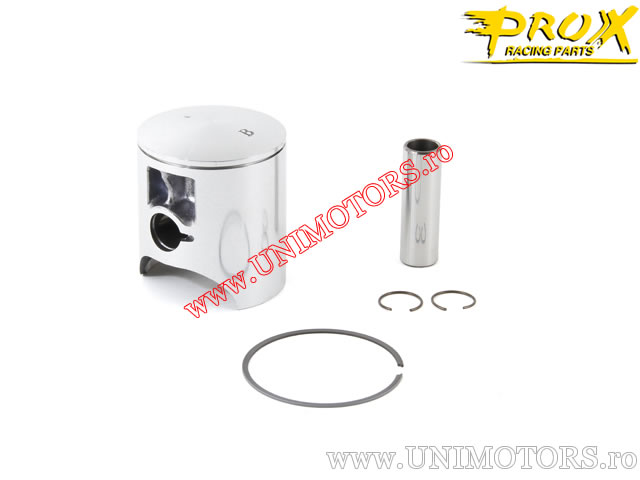

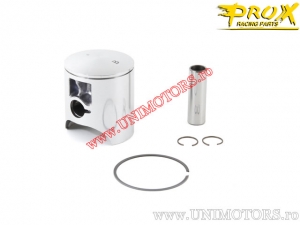

ProX piston kit for Suzuki RM 250 manufactured between 1989-1995 - 250cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 67.00 mm
- engine type: 2-stroke
- total piston length (B): 77.50 mm
- piston pin diameter (C): 18.00 mm
- compression height (D): 28.00 mm
- pin ring position measured from center (E):
- pin ring position measured from center (F): 16.00 mm
- internal distance of piston pin (G): 22.00 mm
- piston crown shape: domed
- manufacturing technology: cast piston

Available piston sizes (A):
- B (66.94 mm)
- C (66.95 mm)
- D (66.96 mm)
- E (66.97 mm)
