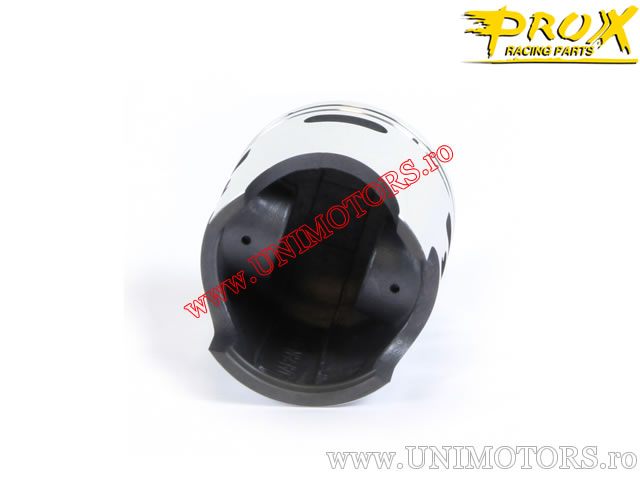

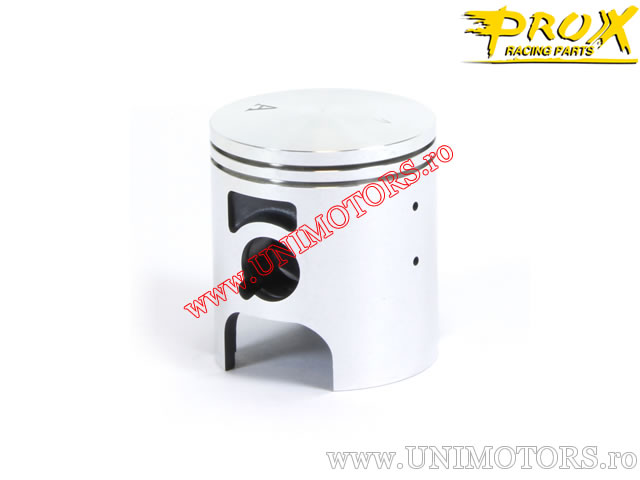

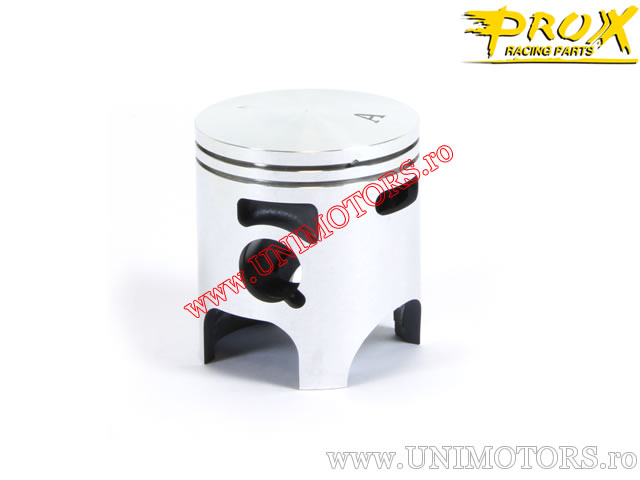

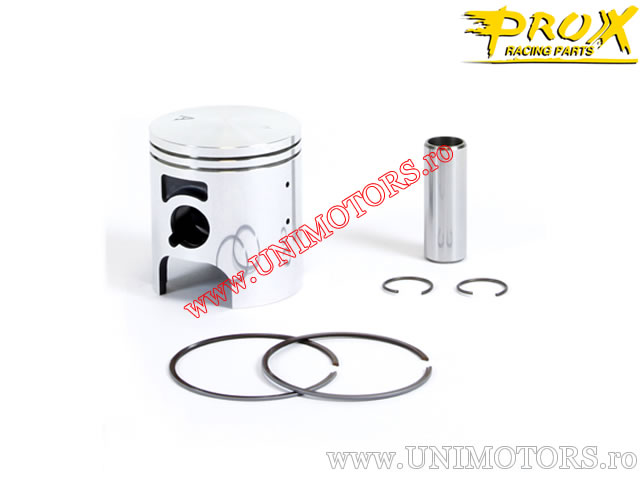

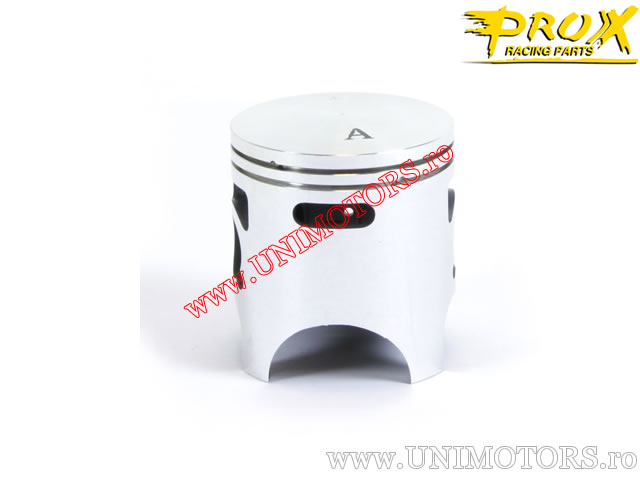

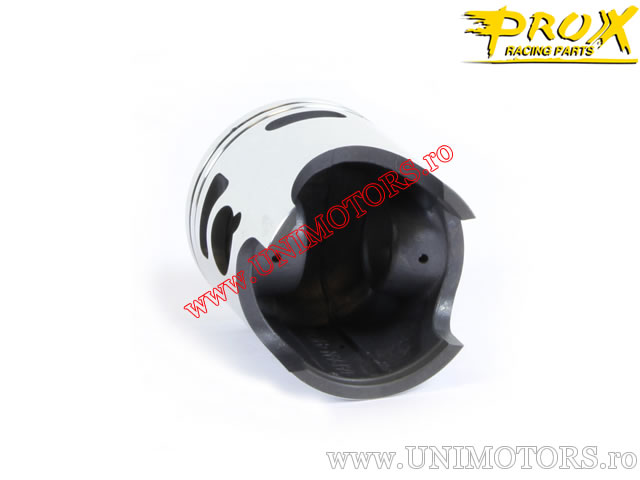

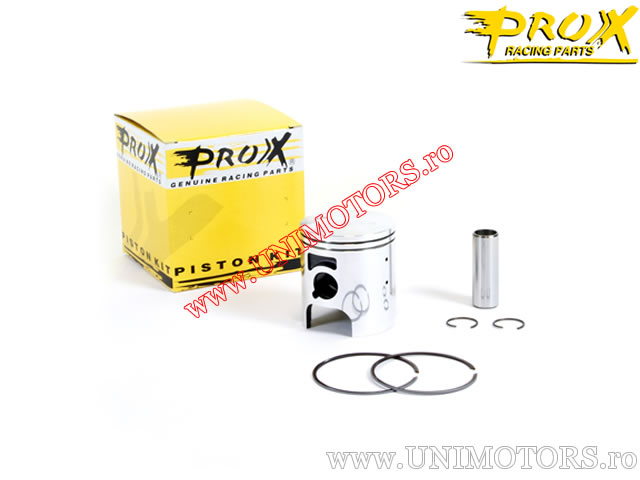

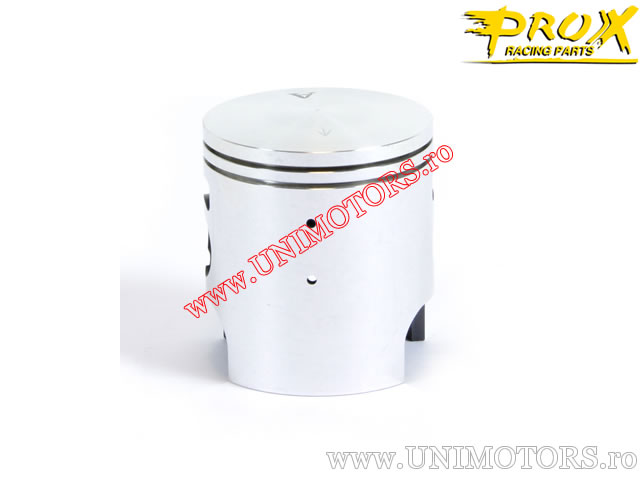

Piston Kit - Kawasaki KX 80 (US version - 82cc / '90-'00) - 80 2T - ProX

from 81,06 EUR shipping costs Product code: PROX.01.4108.x

Please select the piston size from the box above.

ProX piston kit for Kawasaki KX 80 (USA version - 82cc - 1990-2000) - 80cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 48.00 mm
- engine type: 2-stroke
- total piston length (B): 54.00 mm
- piston pin diameter (C): 14.00 mm
- compression height (D): 19.00 mm
- ring pin position measured from center (E): 16.00 mm
- ring pin position measured from center (F): 10.00 mm
- internal distance of piston pin (G): 17.50 mm
- piston head shape: domed
- manufacturing technology: cast piston

Available piston sizes (A):
- A (47.94 mm)
- B (47.95 mm)
- C (47.96 mm)
- D (47.97 mm)
