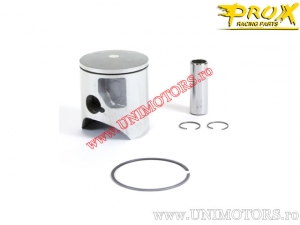

Piston Kit - Kawasaki KX 125 ('01-'02) - 125 2T - ProX

from 113,61 EUR shipping costs Product code: PROX.01.4221.x

Please select the piston size from the box above.

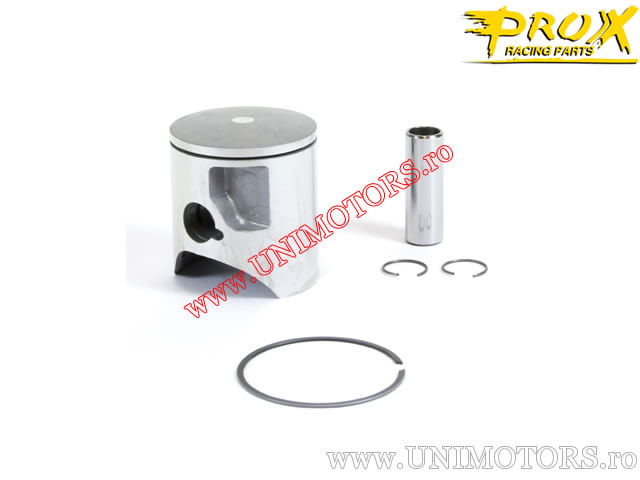

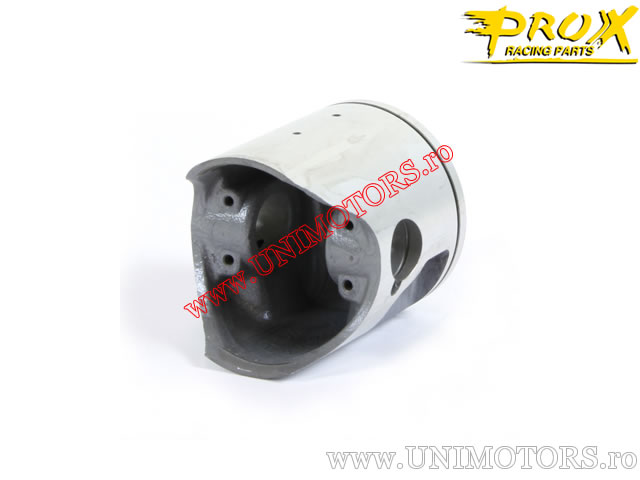

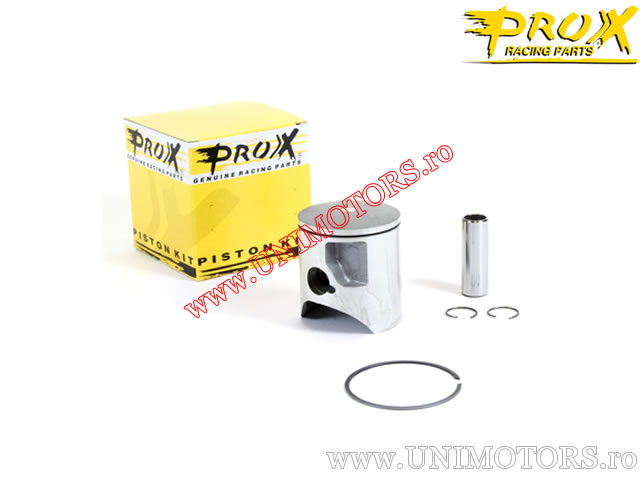

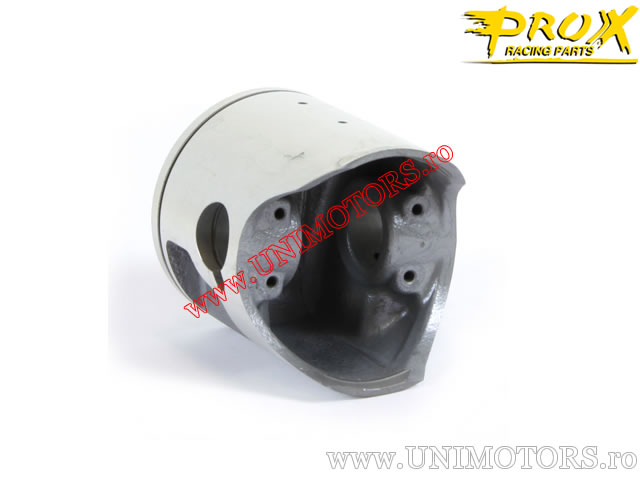

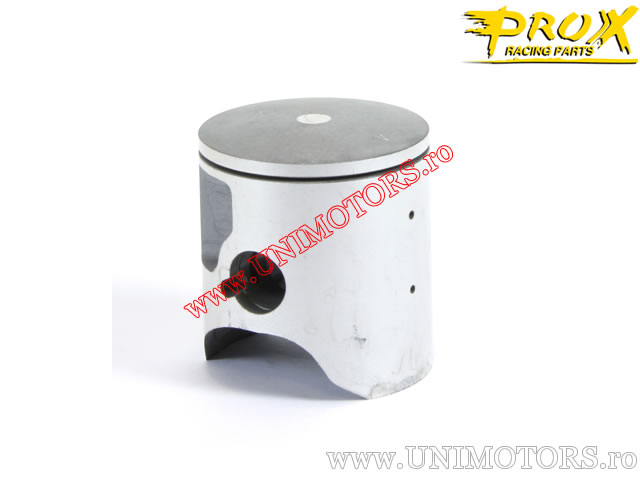

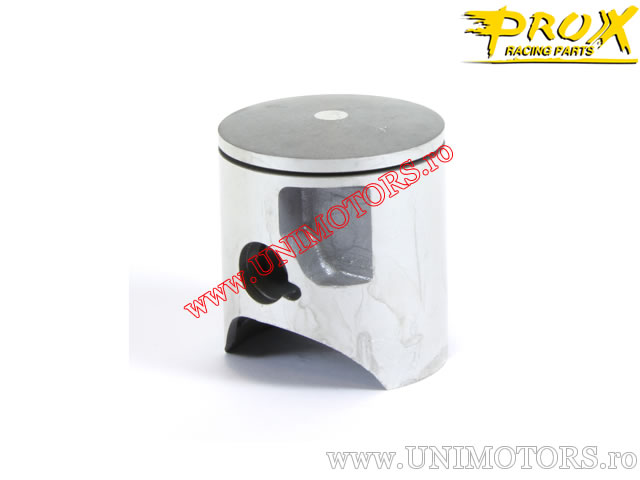

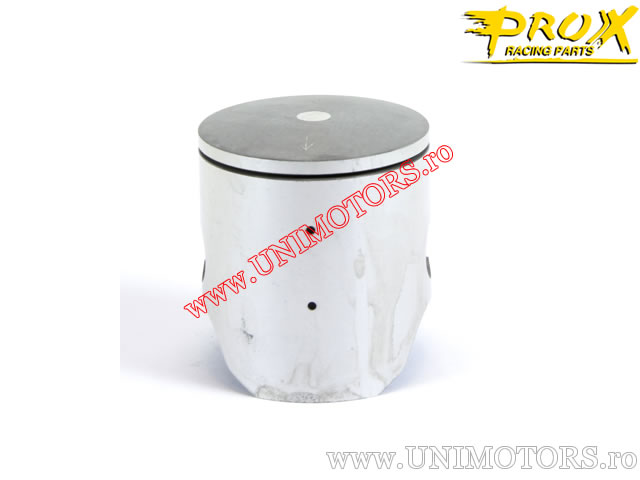

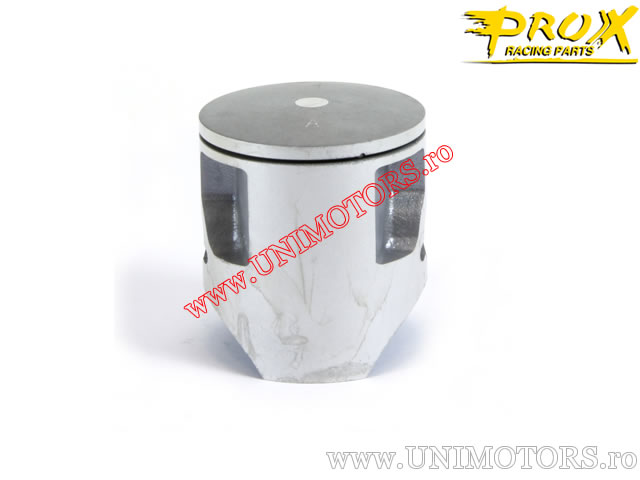

ProX piston kit for Kawasaki KX 125 (2001-2002) - 125cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 54.00 mm
- engine type: 2-stroke
- total piston length (B): 60.00 mm
- piston pin diameter (C): 15.00 mm
- compression height (D): 21.75 mm
- ring pin position measured from center (E): 10.00 mm
- ring pin position measured from center (F):
- internal distance of piston pin (G): 20.75 mm
- piston head shape: domed
- manufacturing technology: cast piston

Available piston sizes (A):
- A (53.96 mm)
- B (53.97 mm)
- C (53.98 mm)
