Piston Kit - Kawasaki KFX 80 ('03-'06) / Suzuki LT 80 ('87-'06) - 80 2-stroke - ProX

from 74,55 EUR shipping costs Product code: PROX.01.3180.xxx

Please select the piston size from the box above.

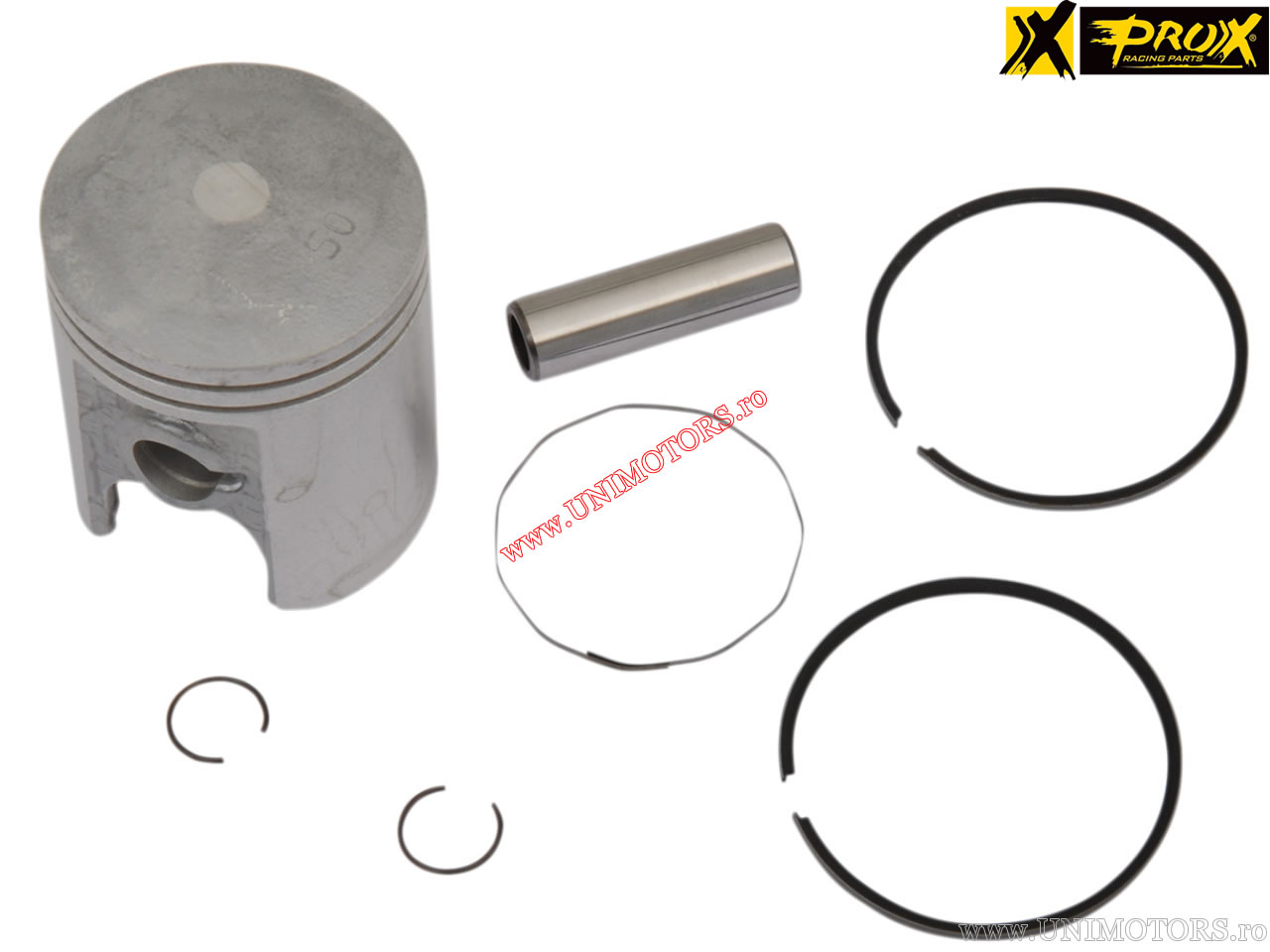

ProX piston kit for Kawasaki KFX 80 (2003-2006) / Suzuki LT 80 (1987-2006) - 80cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 50.00 mm
- engine type: 2-stroke
- total piston length (B): 61.50 mm
- piston pin diameter (C): 12.00 mm
- compression height (D): 21.30 mm
- pin ring position measured from center (E): 12.75 mm
- pin ring position measured from center (F): 12.75 mm
- internal distance of piston pin (G): 16.70 mm
- piston head shape: domed
- manufacturing technology: cast piston

Available piston sizes (A):
- standard (50.00 mm)
- +0.50mm (50.50 mm)
- +1.00mm (51.00 mm)
- +1.50mm (51.50 mm)
