Piston Kit - KTM EXC 200 ('98-'16) - 200 2T - ProX

from 128,73 EUR shipping costs Product code: PROX.01.6249.x

Please select the piston size from the box above.

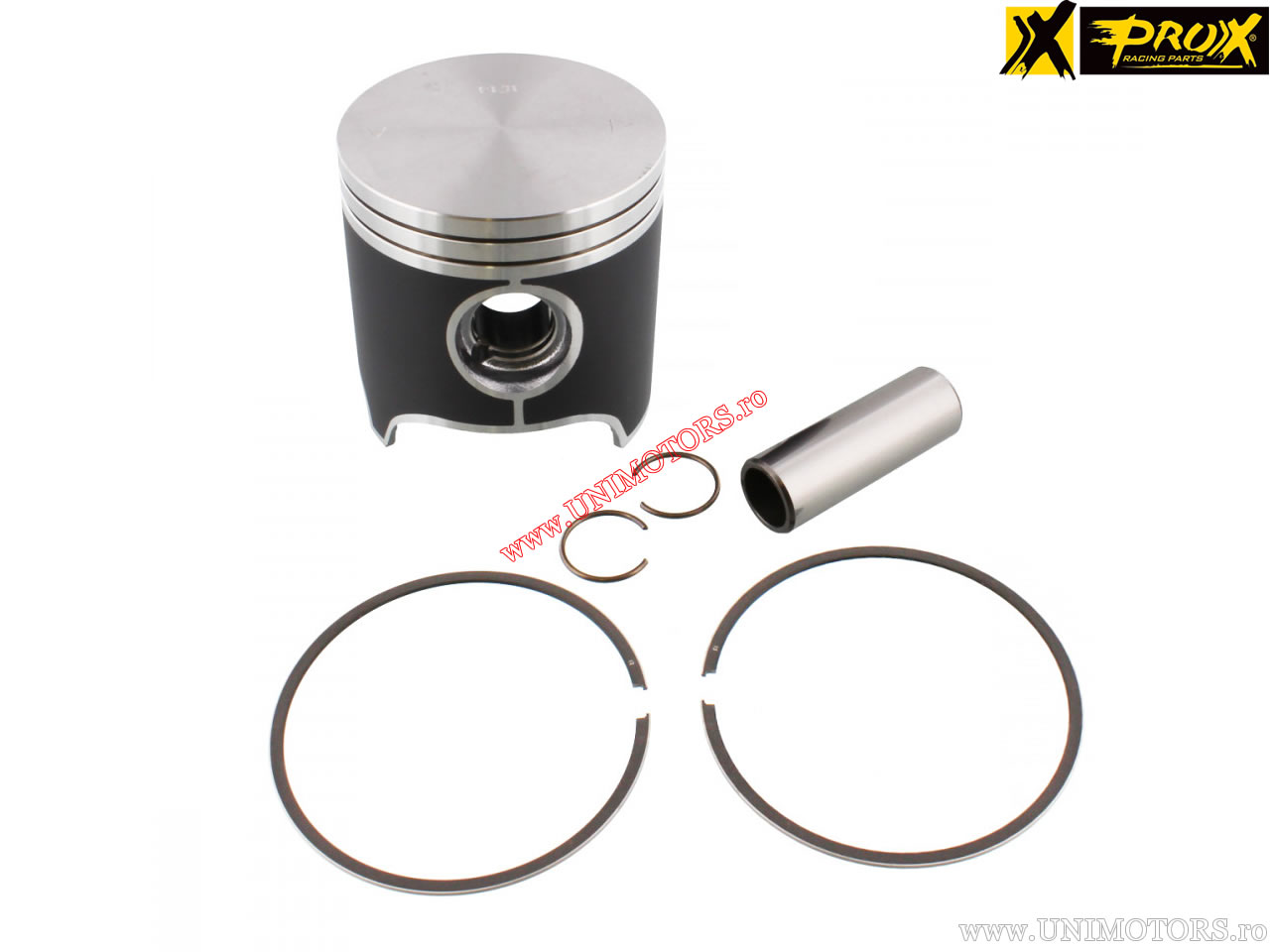

ProX piston kit for KTM EXC 200 (1998-2016) - 200cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 64.00 mm
- engine type: 2-stroke
- total piston length (B): 66.00 mm
- piston pin diameter (C): 16.00 mm
- compression height (D): 20.00 mm
- ring pin position measured from center (E): 1.75 mm
- ring pin position measured from center (F): 1.75 mm
- internal distance of piston pin (G): 21.00 mm
- piston head shape: flat
- other information:
- manufacturing technology: cast piston, coated with molybdenum disulfide (MoS2)

Available piston sizes (A):
- A (63.94 mm)
- B (63.95 mm)
- C (63.96 mm)
- D (63.97 mm)
