Piston Kit - Husqvarna TE 310 ('09-'10) - 310 4T - ProX

from 184,59 EUR shipping costs Product code: PROX.01.6339.x

Please select the piston size from the box above.

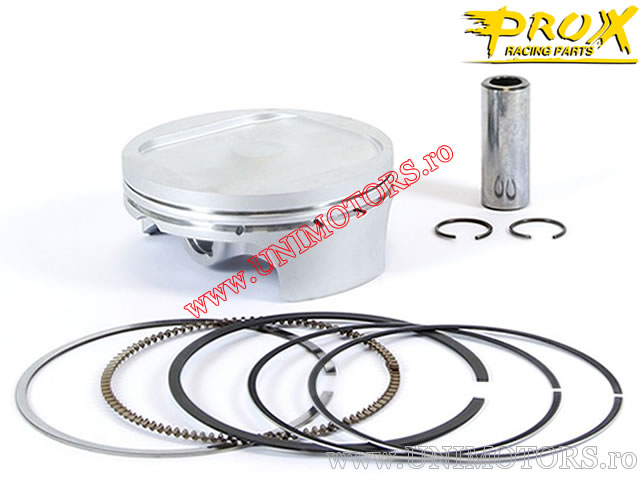

ProX piston kit for Husqvarna TE 310 (2009-2010) - 310cc 4T. The complete application list can be found below.

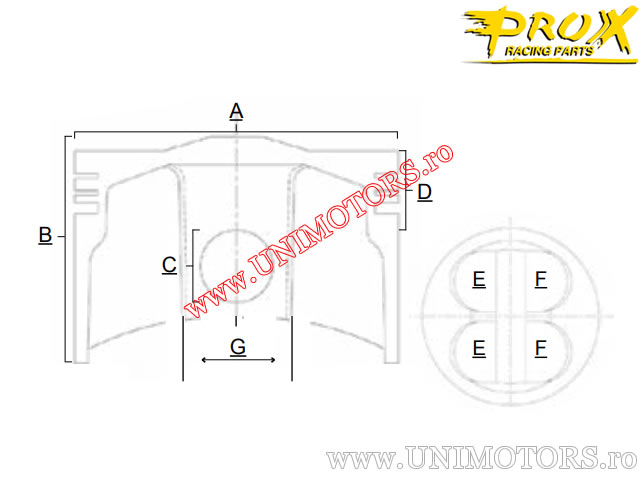

Technical specifications:
- standard cylinder diameter (factory diameter): 83.00 mm
- engine type: 4-stroke
- total piston length (B): 34.30 mm
- piston pin diameter (C): 16.00 mm
- compression height (D): 12.00 mm
- pin groove position measured from center (E):
- pin groove position measured from center (F):
- internal distance of piston pin (G): 18.00 mm
- piston crown shape: flat with domed center
- additional information: 4 x valve pockets
- manufacturing technology: forged piston

Available piston sizes (A):
- A (82.96 mm)
- B (82.97 mm)
- C (82.98 mm)
