Piston Kit - Husaberg FE 570 ('09-'12) - 570 4T - ProX

from 195,51 EUR shipping costs Product code: PROX.01.6519.x

Please select the piston size from the box above.

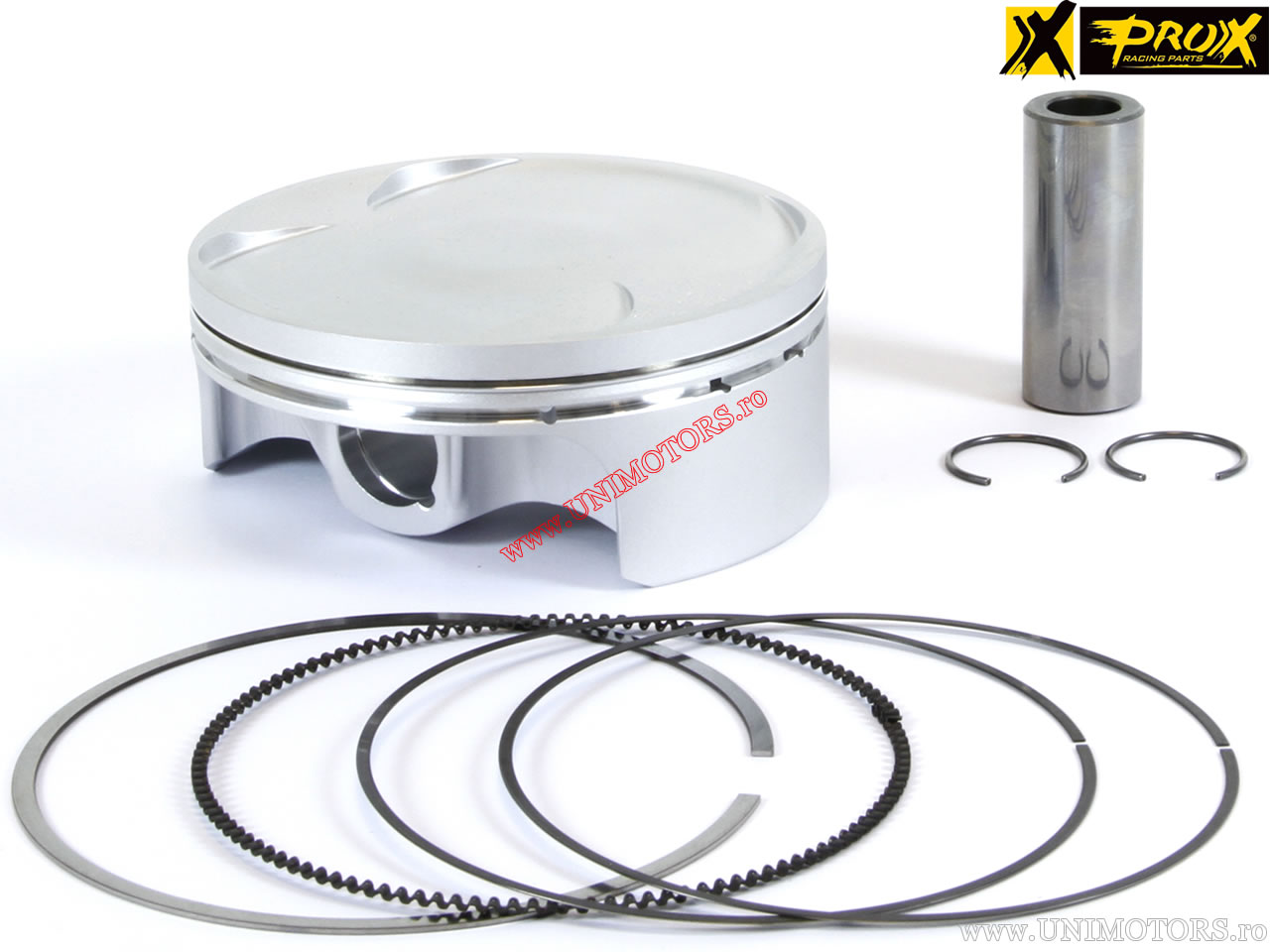

ProX piston kit for Husaberg FE 570 (2009-2012) - 570cc 4T. The complete application list can be found below.

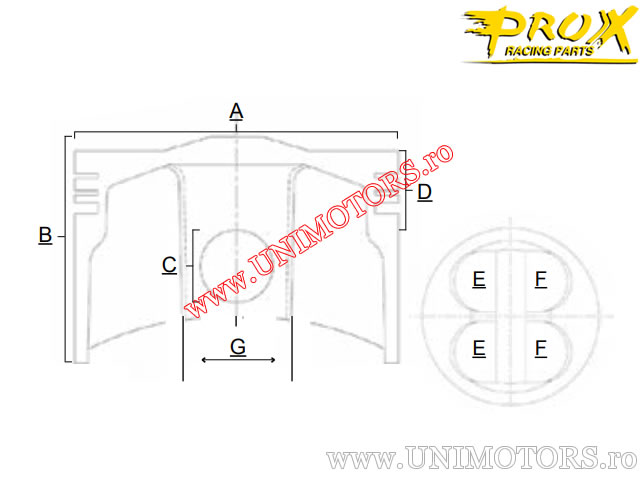

Technical specifications:
- standard cylinder diameter (factory diameter): 100.00 mm
- engine type: 4-stroke
- total piston length (B): 42.60 mm
- piston pin diameter (C): 20.00 mm
- compression height (D): 14.50 mm
- pin groove position measured from center (E):
- pin groove position measured from center (F):
- internal distance of piston pin (G): 23.00 mm
- piston head shape: recessed with internal dome
- other information: 4 x valve pockets
- manufacturing technology: forged piston

Available piston sizes (A):
- A (99.95 mm)
- B (99.96 mm)
- C (99.97 mm)
