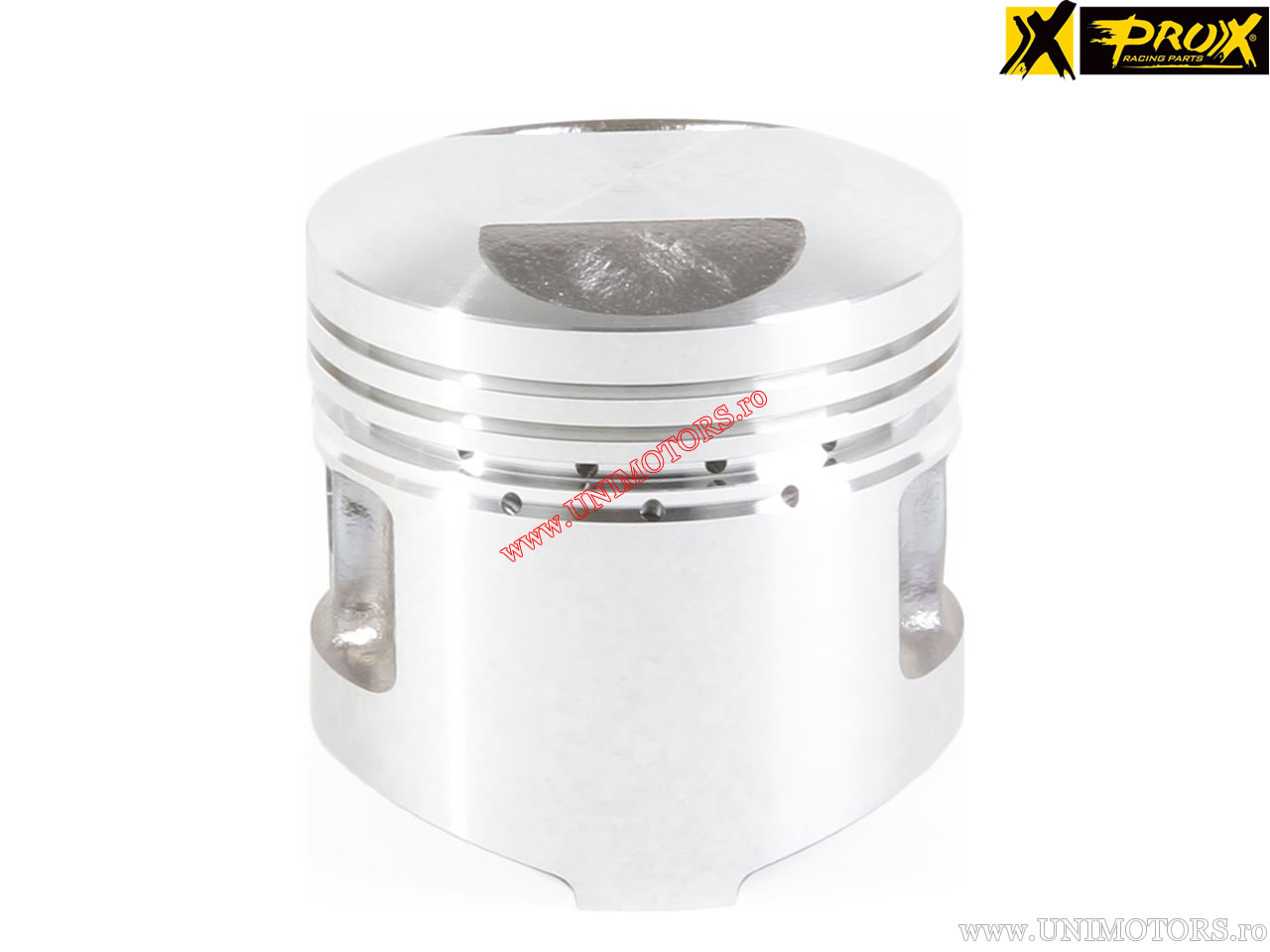

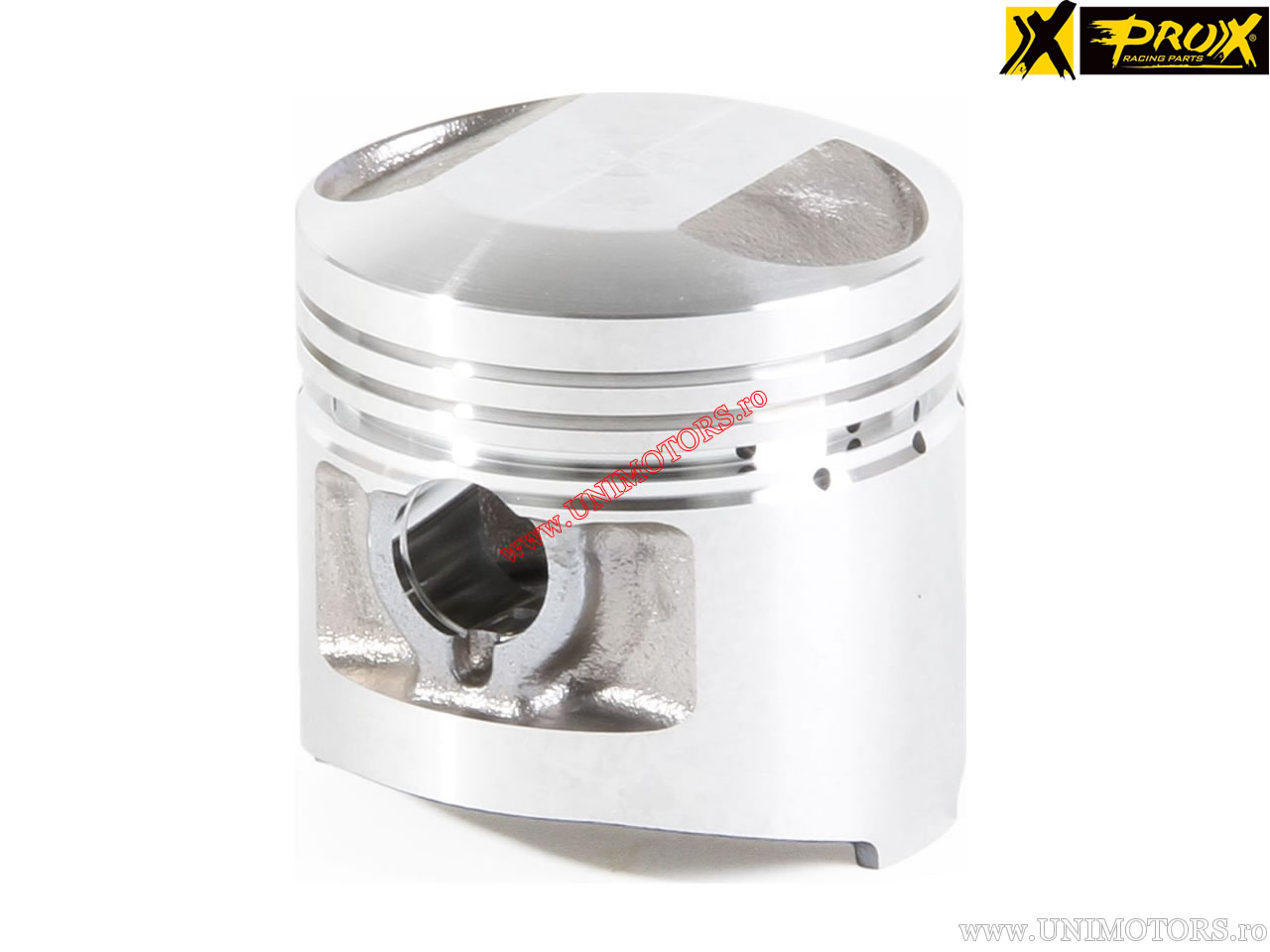

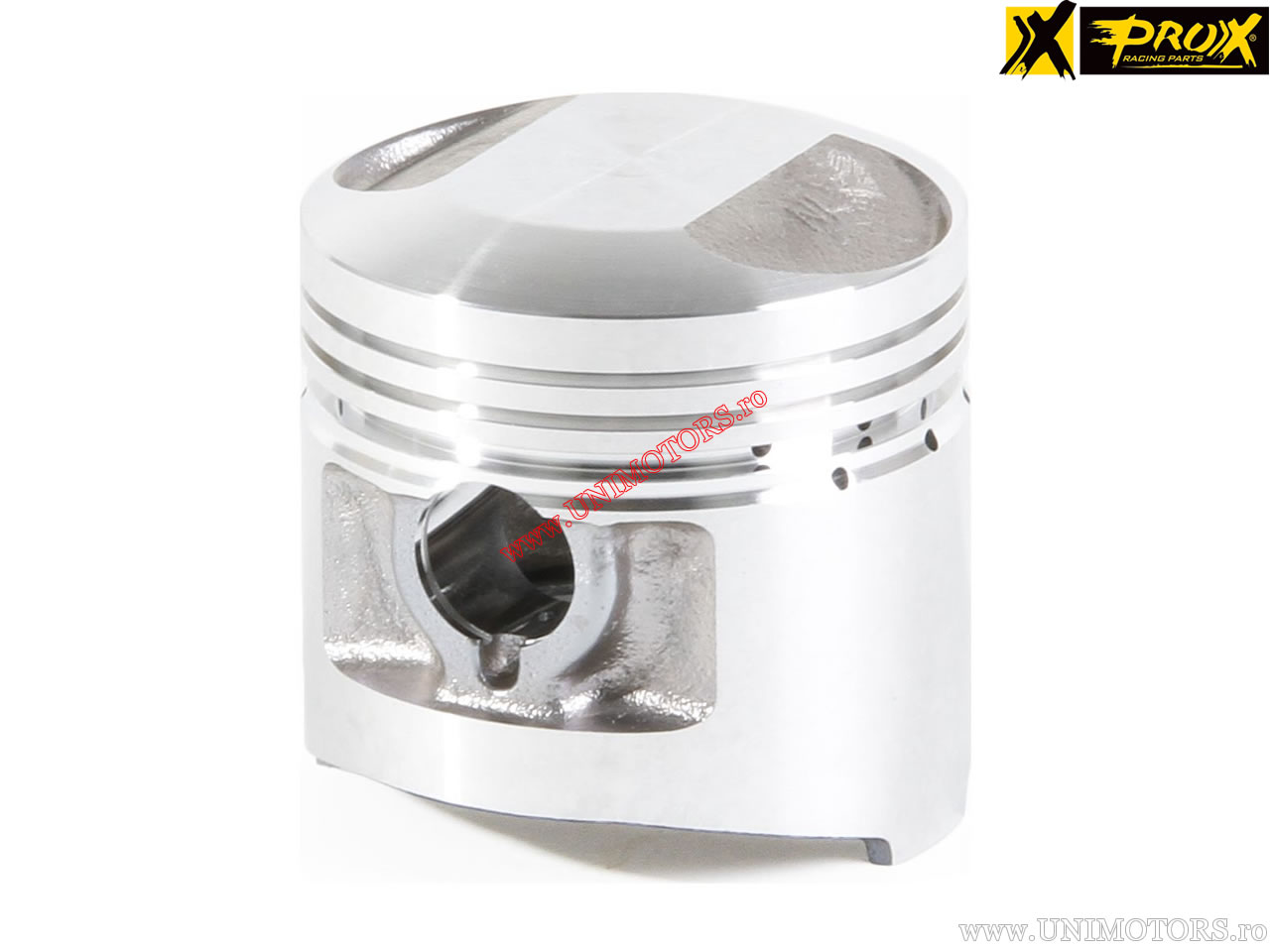

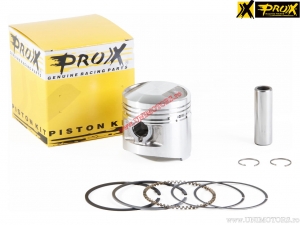

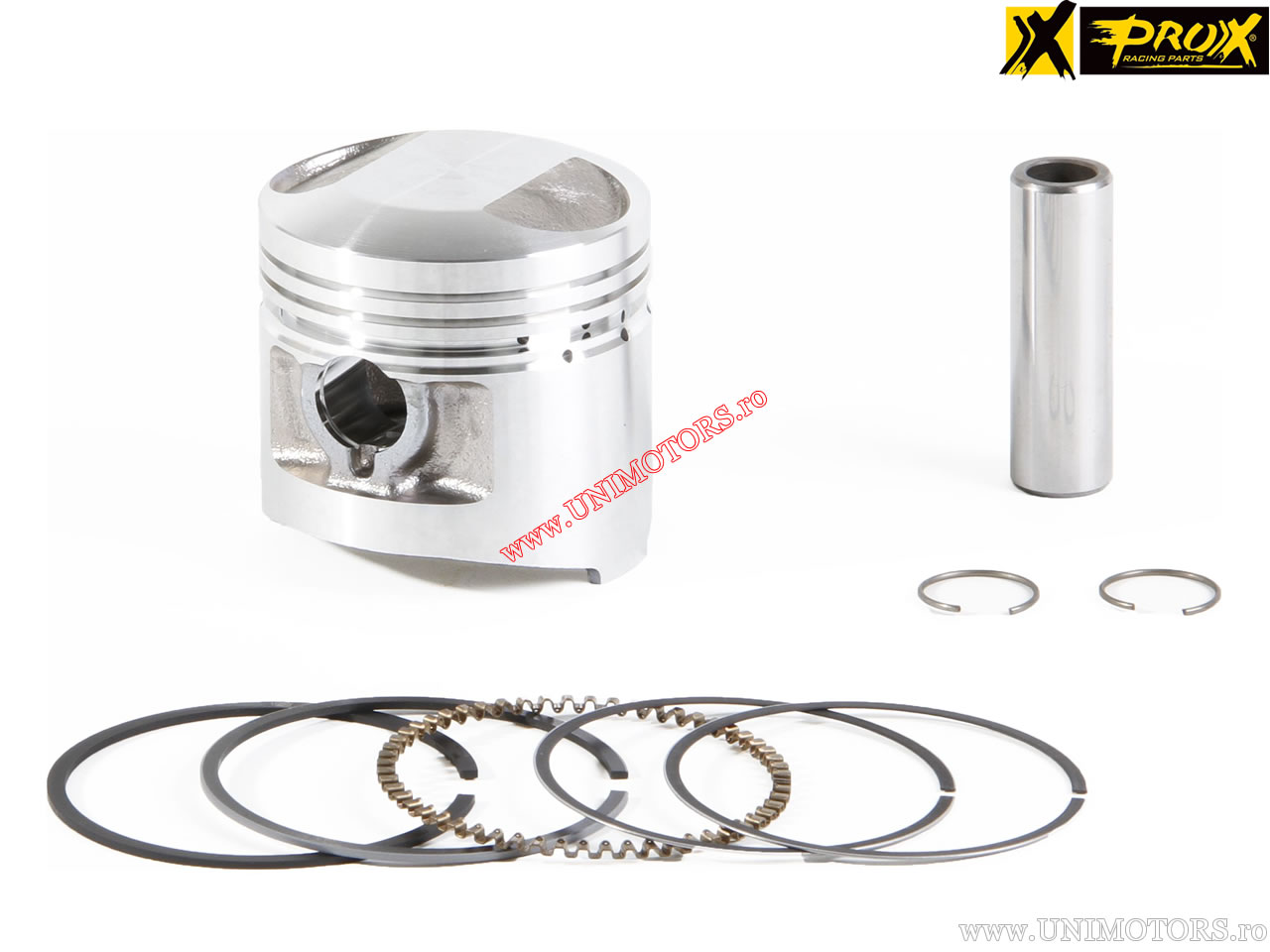

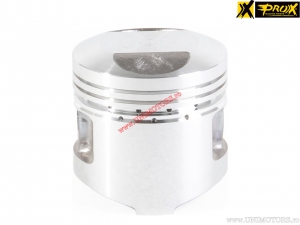

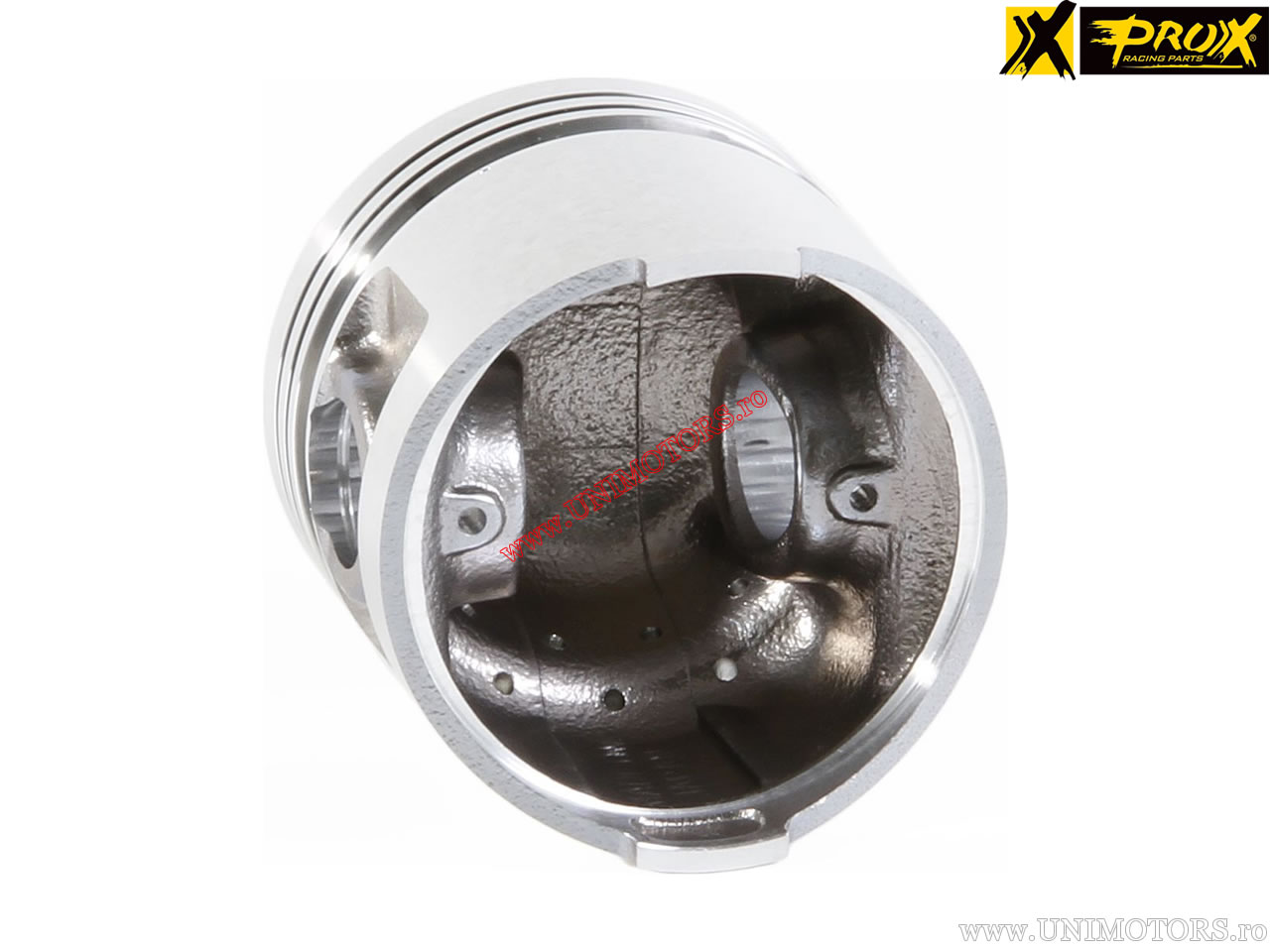

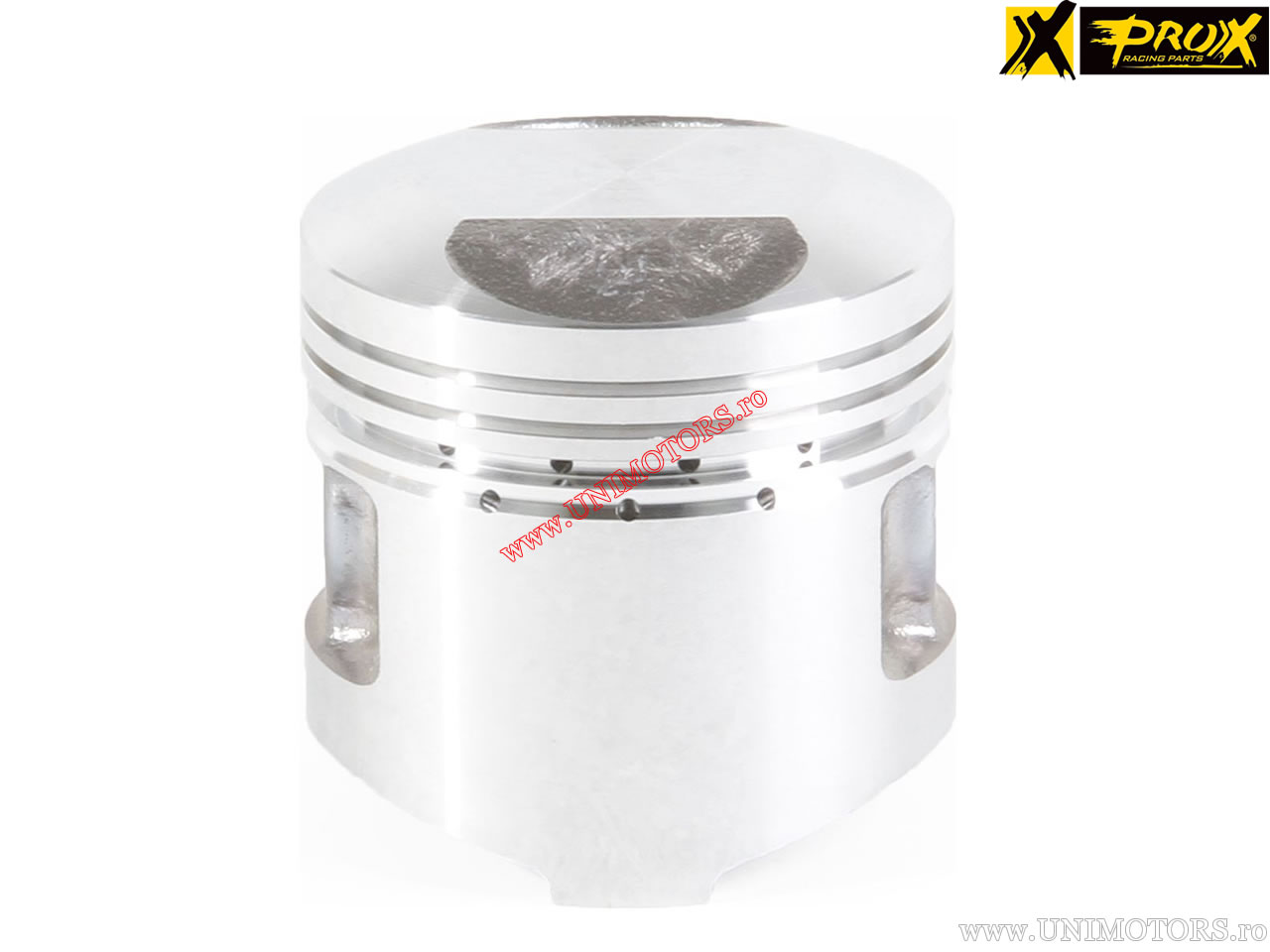

Piston Kit - Honda XL 125 S / CG 125 - 125 4T - ProX

from 74,55 EUR shipping costs Product code: PROX.01.1176.xxx

Please select the piston size from the box above.

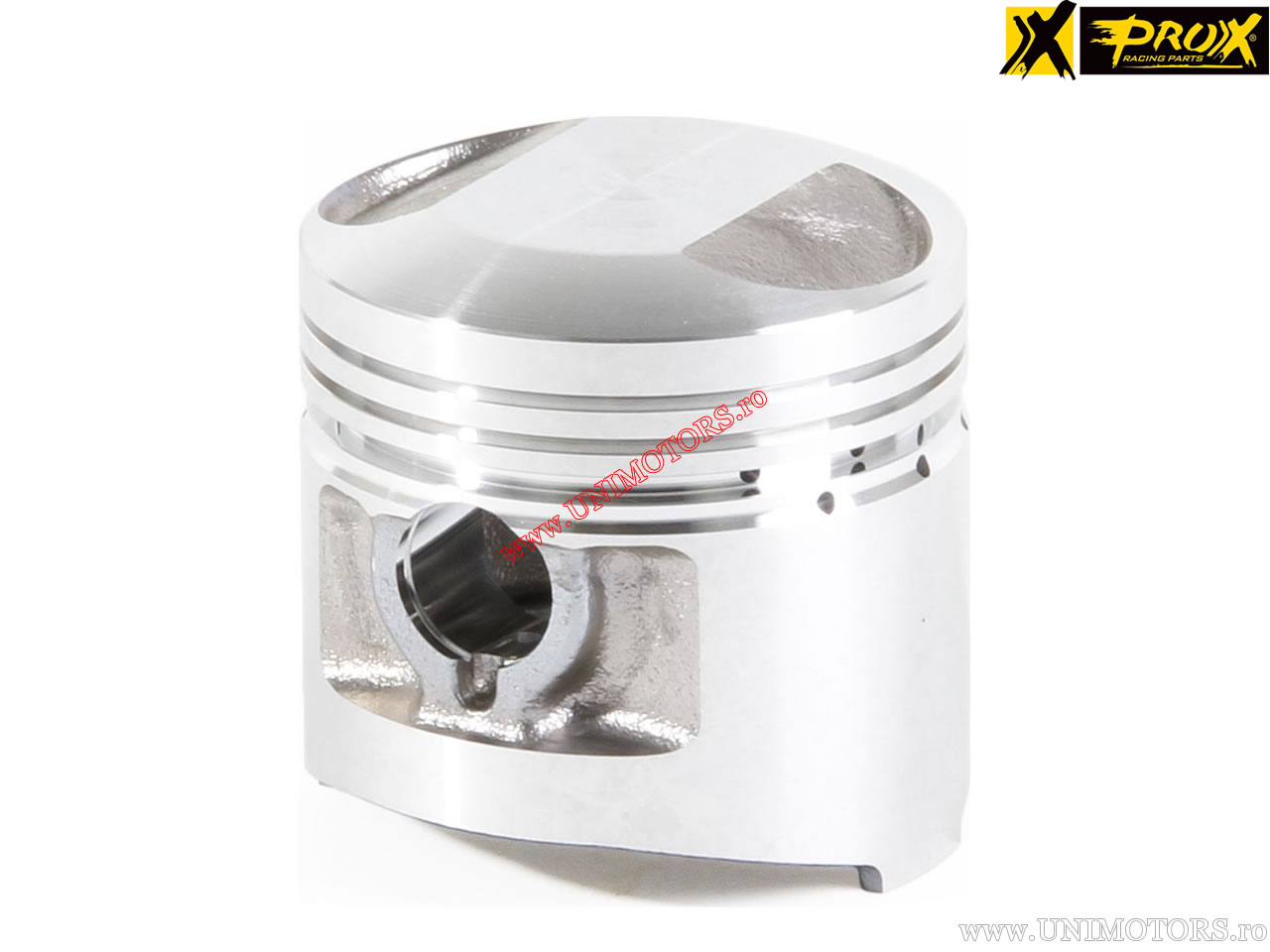

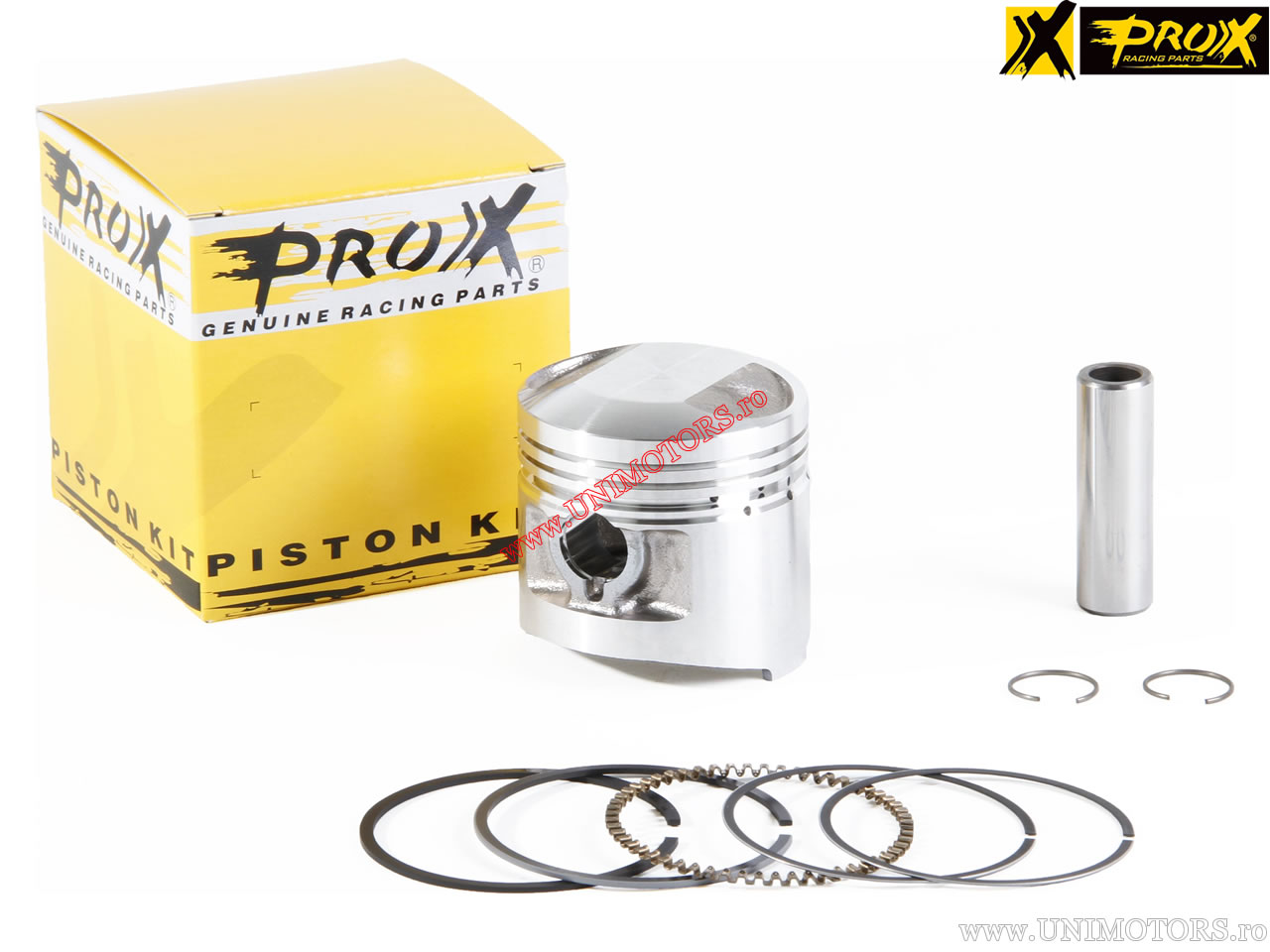

ProX piston kit for Honda CG 125 / XL 125 S - 125cc 4T. The complete application list can be found below.

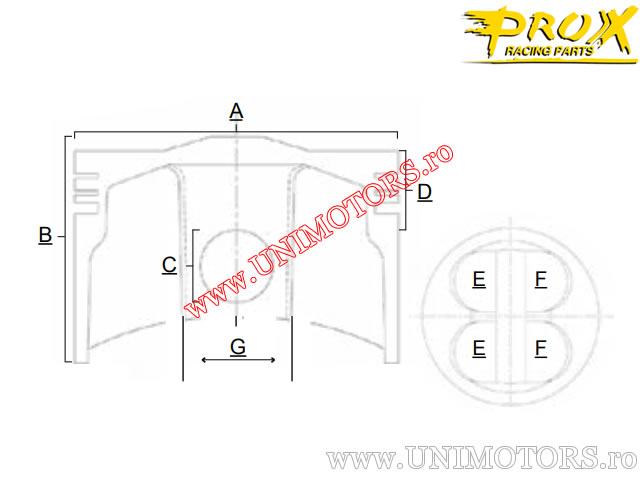

Technical specifications:
- standard cylinder diameter (factory diameter): 56.50 mm
- engine type: 4-stroke
- total piston length (B): 56.50 mm
- piston pin diameter (C): 15.00 mm
- compression height (D): 15.30 mm
- intake valve pocket diameter (E): -
- exhaust valve pocket diameter (F): -
- internal distance of piston pin (G): 20.00 mm
- piston crown shape: domed
- other information: 2 x valve pockets
- manufacturing technology: cast piston

Available piston sizes (A):
- standard (56.50 mm)
- +0.25mm (56.75 mm)
- +0.50mm (57.00 mm)
- +0.75mm (57.25 mm)
- +1.00mm (57.50 mm)
