Piston Kit - Honda NH 80 / Lead 80 - 80 2T - ProX

from 64,26 EUR shipping costs Product code: PROX.01.1160.xxx

Please select the piston size from the box above.

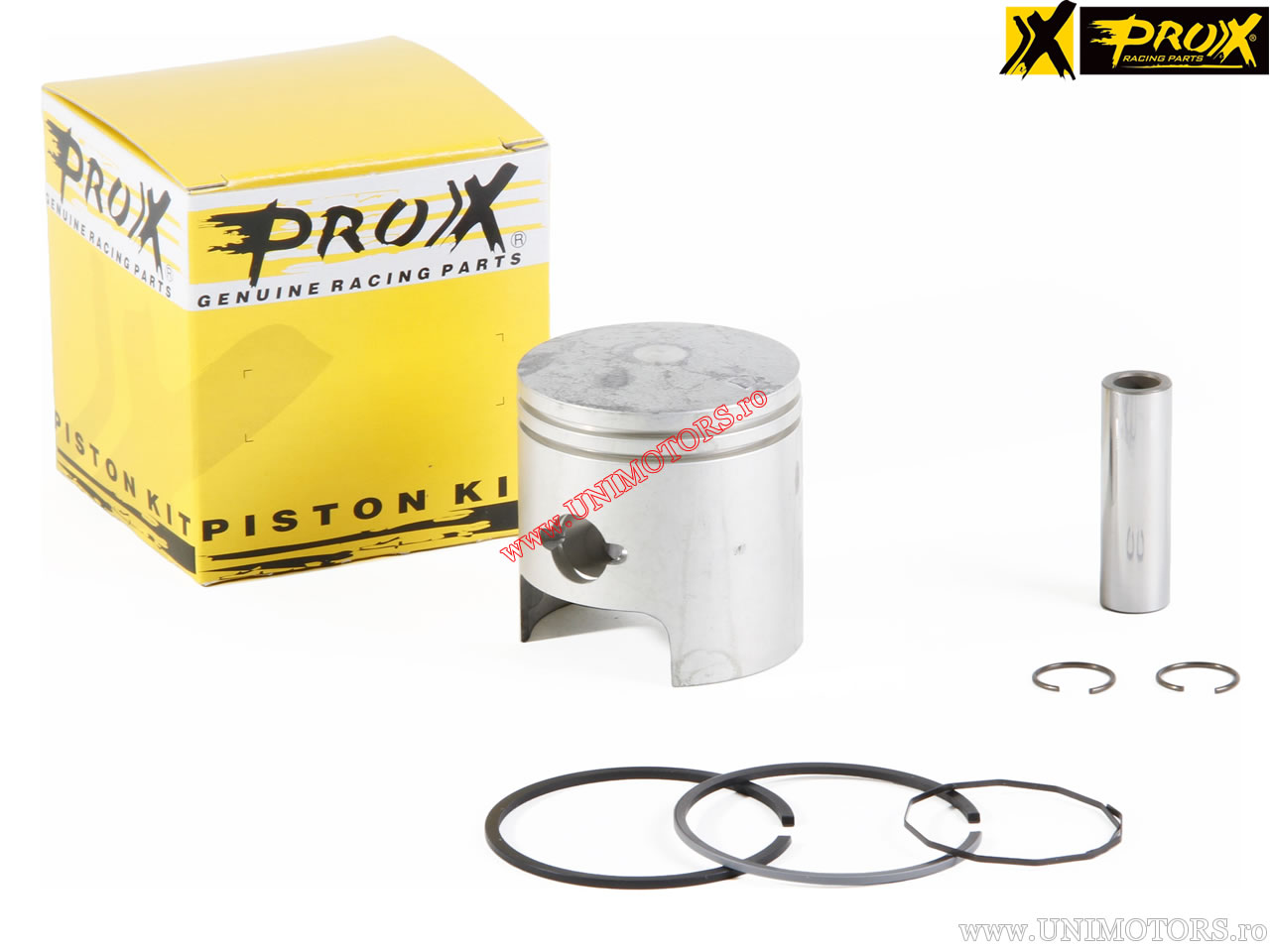

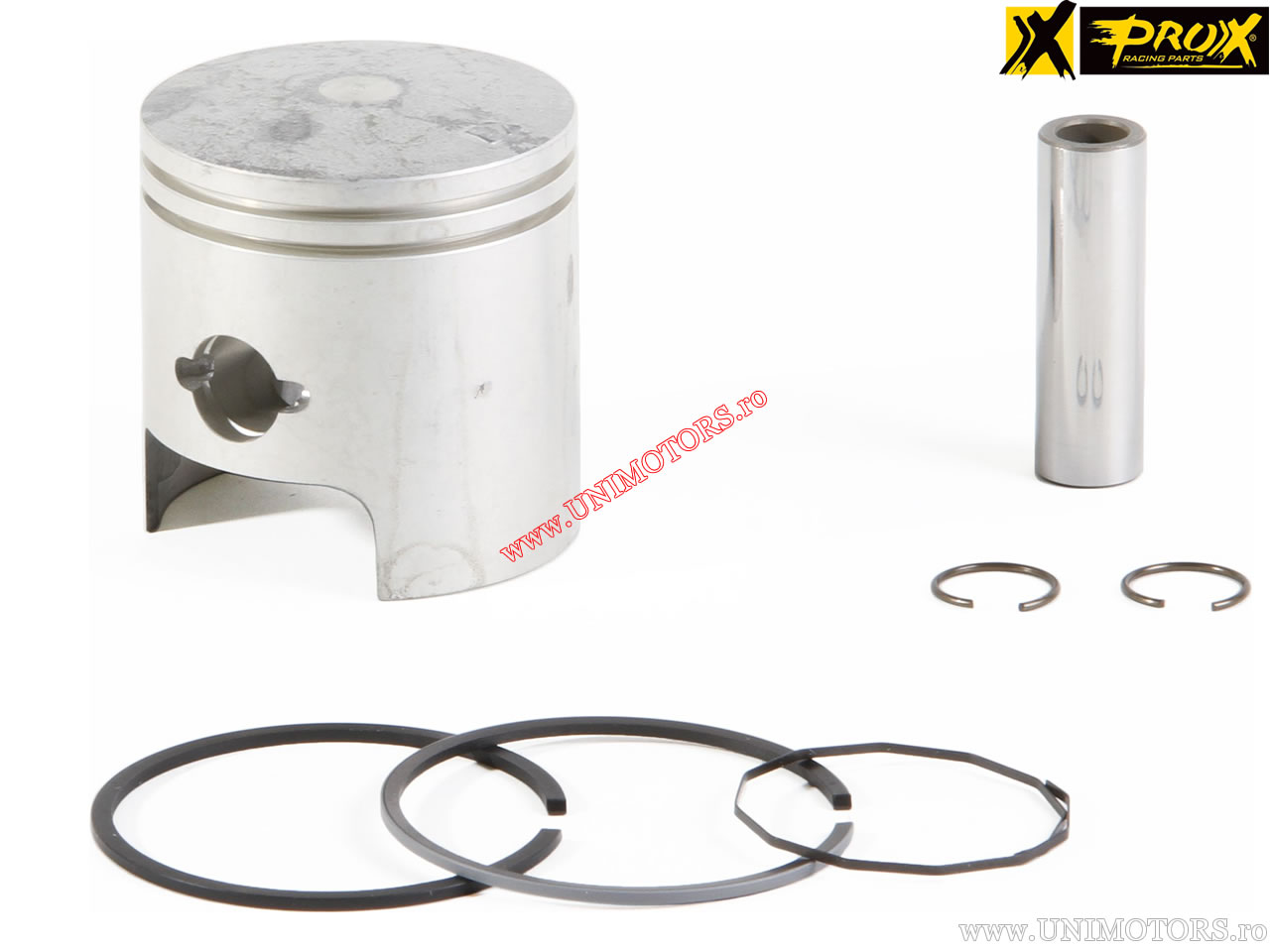

ProX piston kit for Honda NH 80 / Lead 80 - 80cc 2T. The complete application list can be found below.

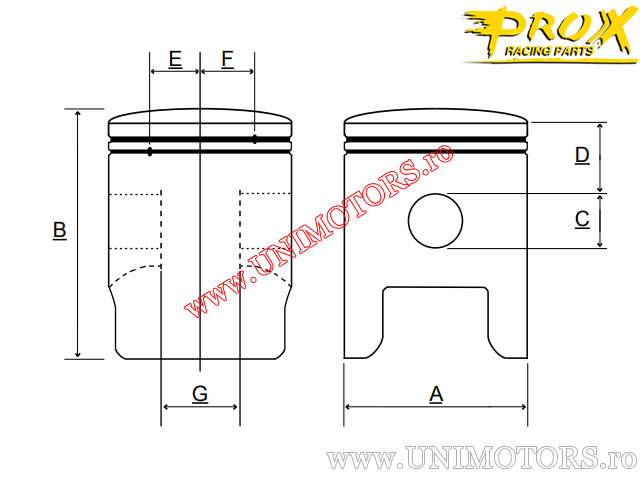

Technical specifications:
- standard cylinder diameter (factory diameter): 48.00 mm
- engine type: 2 stroke
- total piston length (B): 51.00 mm
- piston pin diameter (C): 12.00 mm
- compression height (D): 19.25 mm
- pin ring position measured from center (E): 14.00 mm
- pin ring position measured from center (F): 14.00 mm
- internal distance of piston pin (G): 14.50 mm
- piston head shape: domed
- manufacturing technology: cast piston

Available piston sizes (A):
- +0.75mm (48.75 mm)
- +1.00mm (49.00 mm)
- +2.00mm (50.00 mm)
