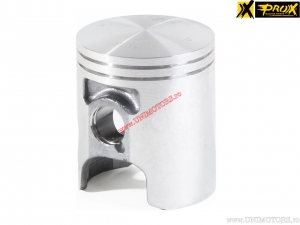

Piston Kit - Honda MTX 125 - 125 2T - ProX

from 103,53 EUR shipping costs Product code: PROX.01.1200.x

Please select the piston size from the box above.

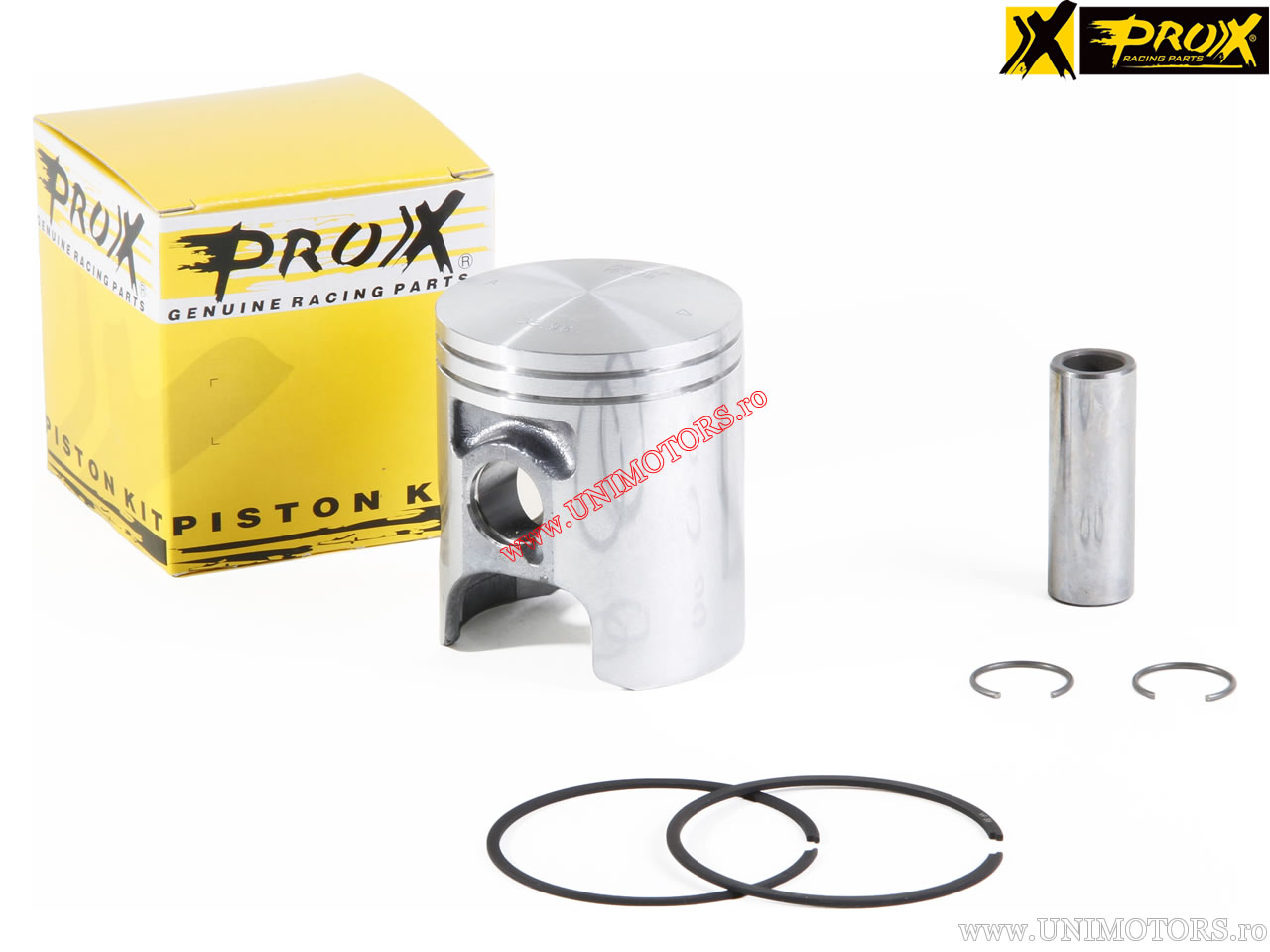

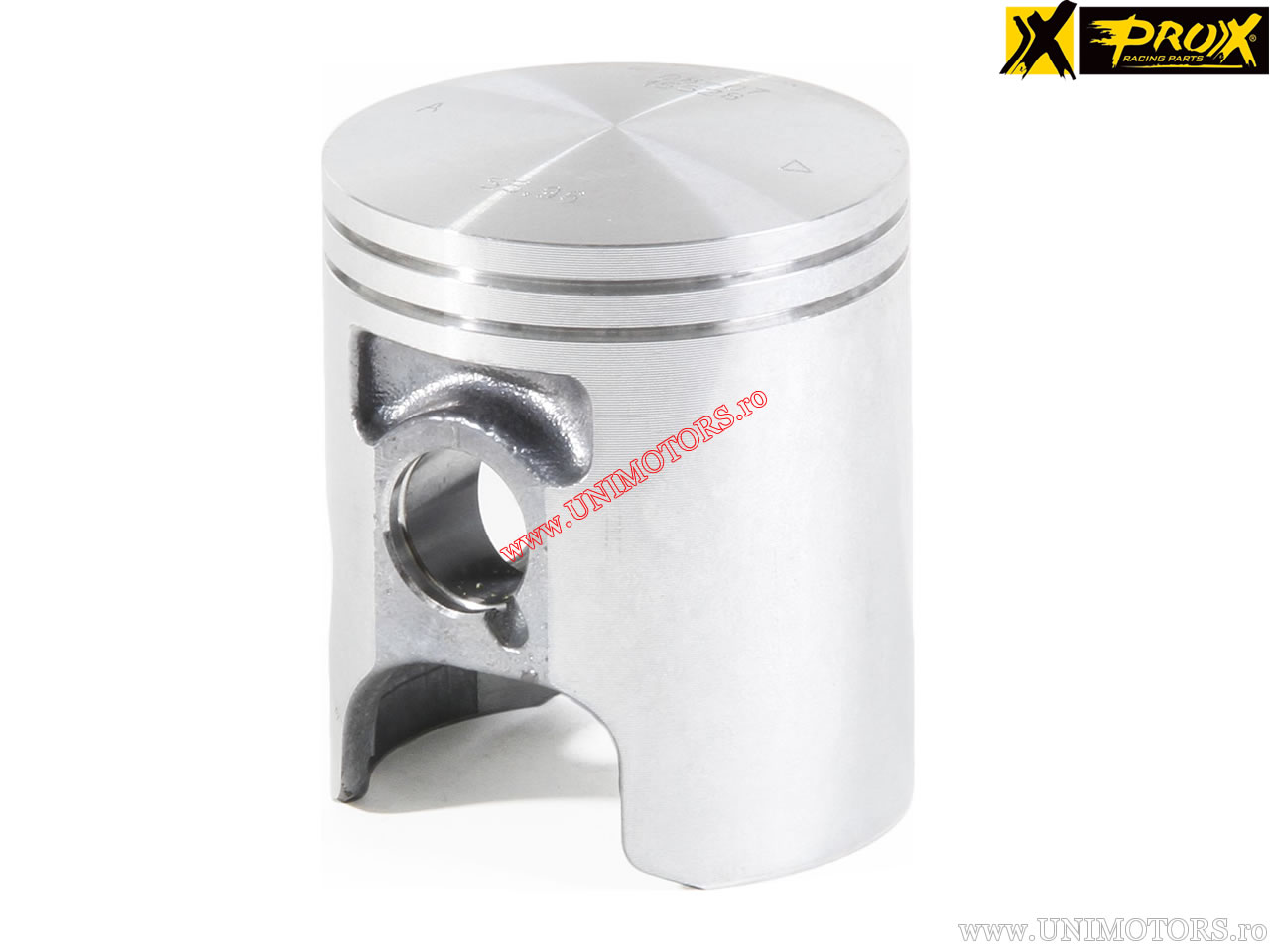

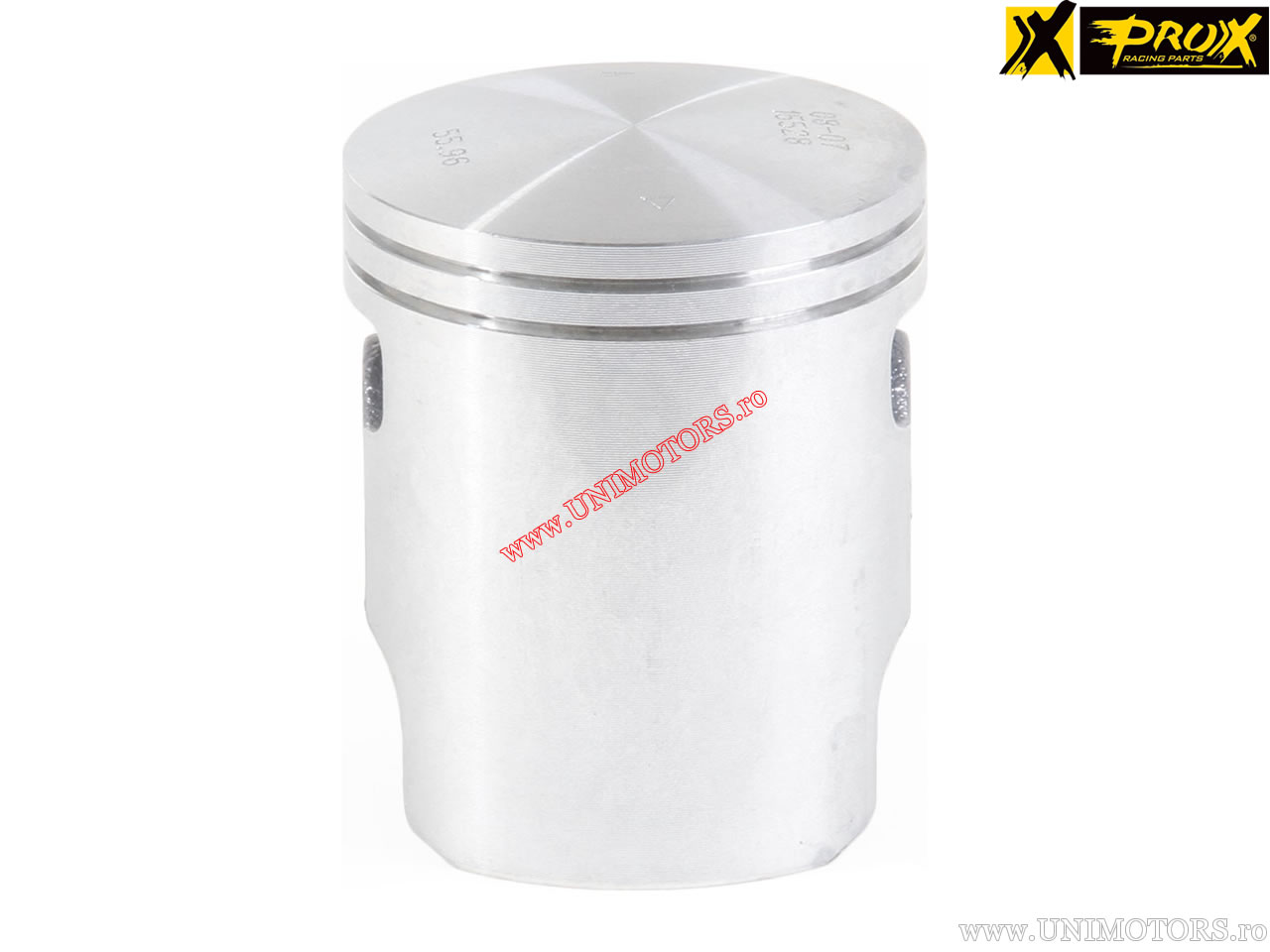

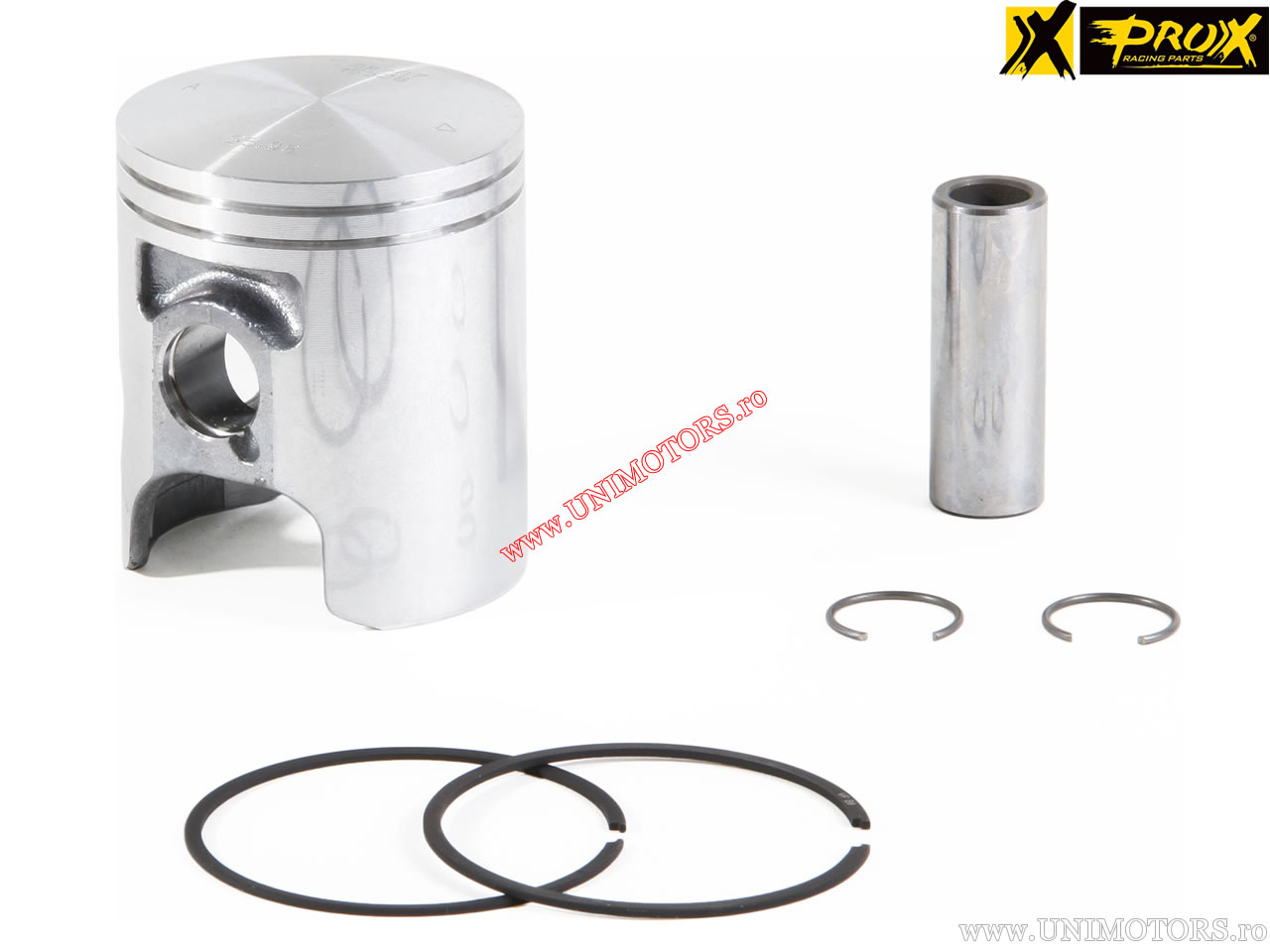

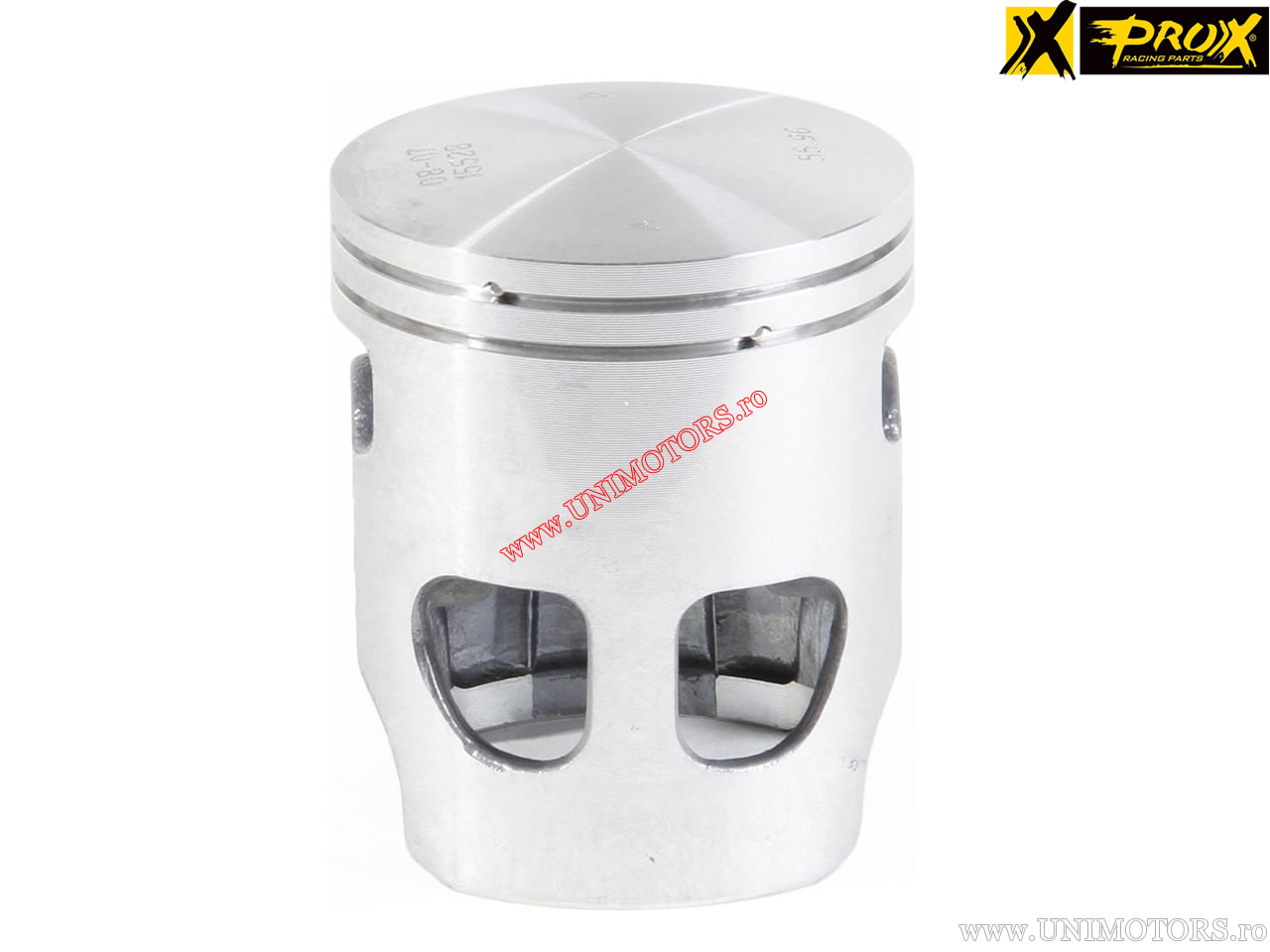

ProX piston kit for Honda MTX 125 - 125cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 56.00 mm
- engine type: 2-stroke
- total piston length (B): 67.25 mm
- piston pin diameter (C): 16.00 mm
- compression height (D): 22.50 mm
- pin ring position measured from center (E): 12.50 mm
- pin ring position measured from center (F): 12.50 mm
- internal distance of piston pin (G): 19.50 mm
- piston head shape: domed

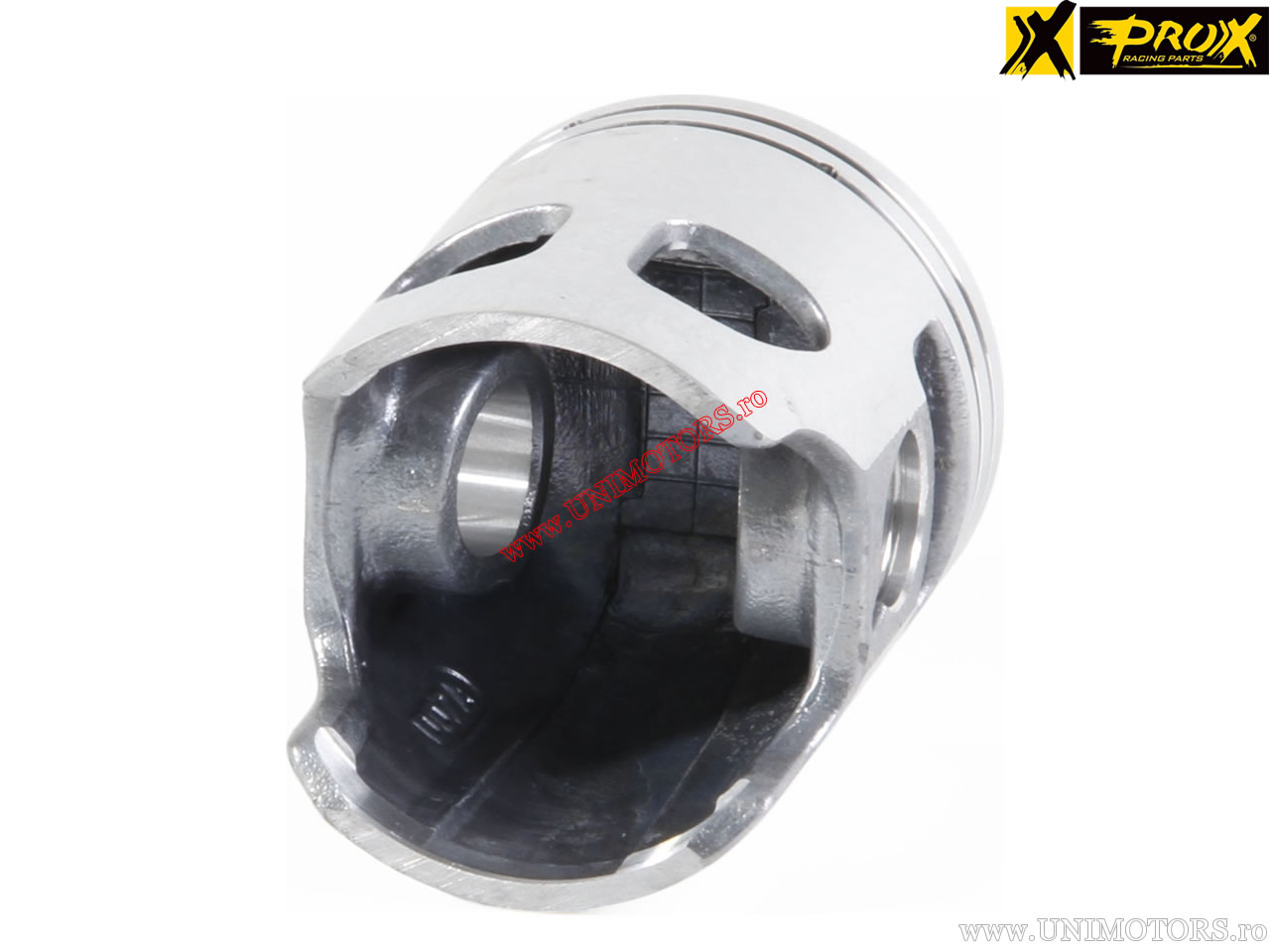

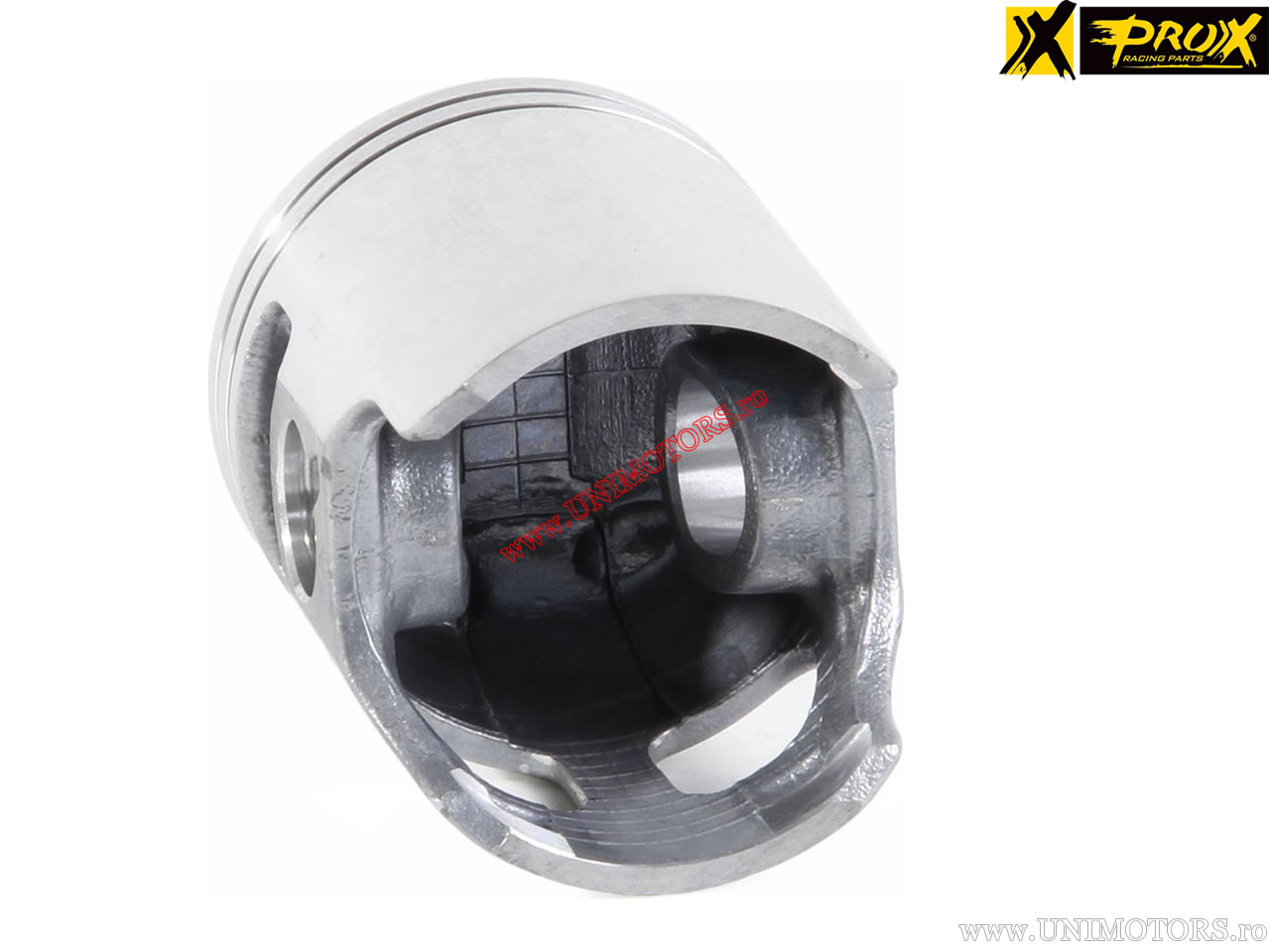

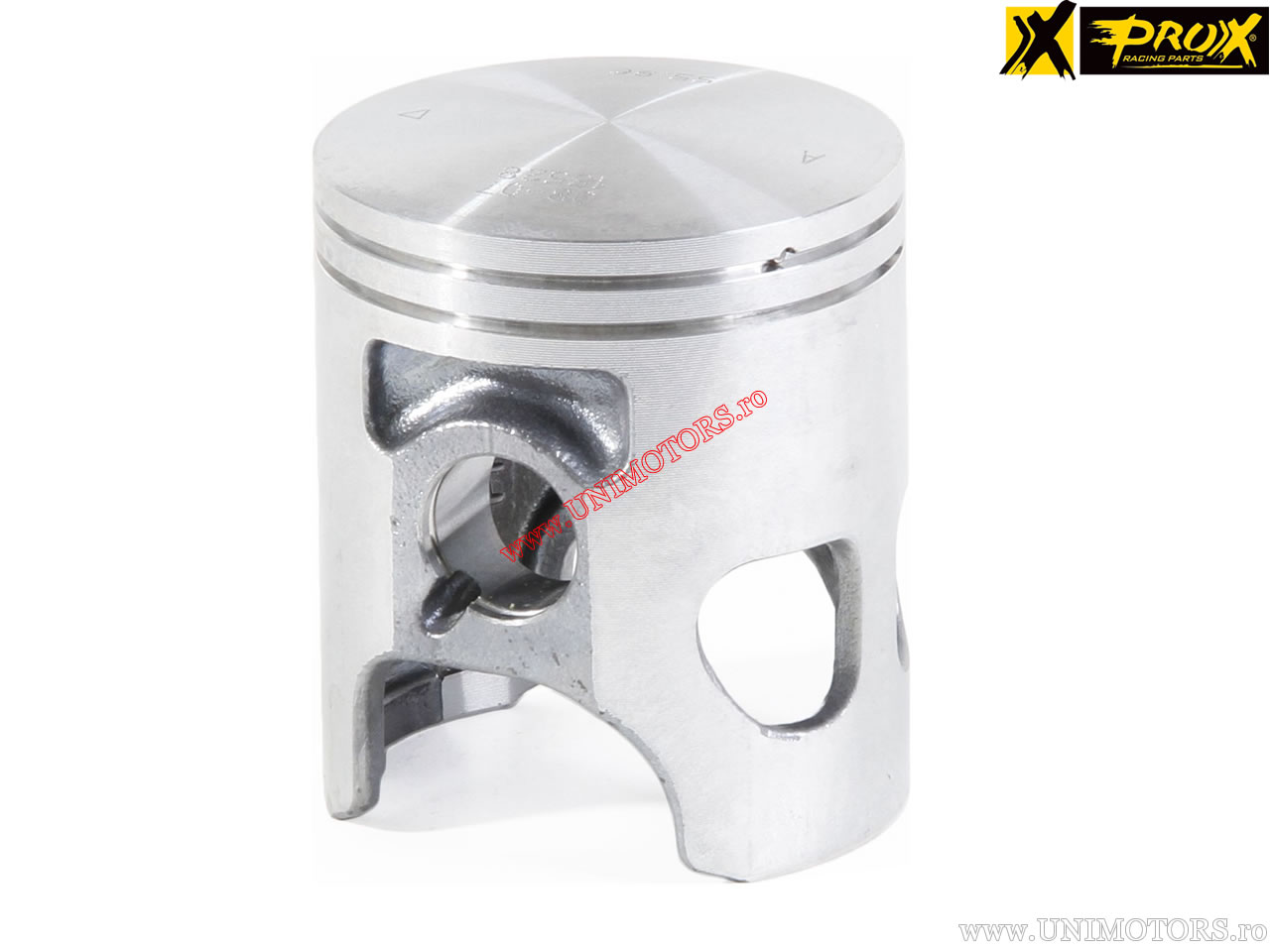

- manufacturing technology: cast piston - two windows on intake

Available piston sizes (A):
- A (55.96 mm)
- B (55.97 mm)
- C (55.98 mm)
- D (55.99 mm)
