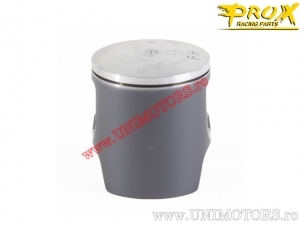

Piston Kit - Honda CR 85 R ('03-'07) - 85 2T - ProX

from 81,06 EUR shipping costs Product code: PROX.01.1113.x

Please select the piston size from the box above.

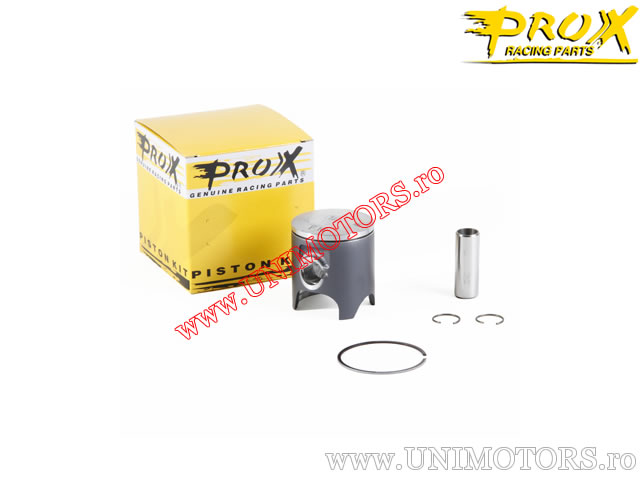

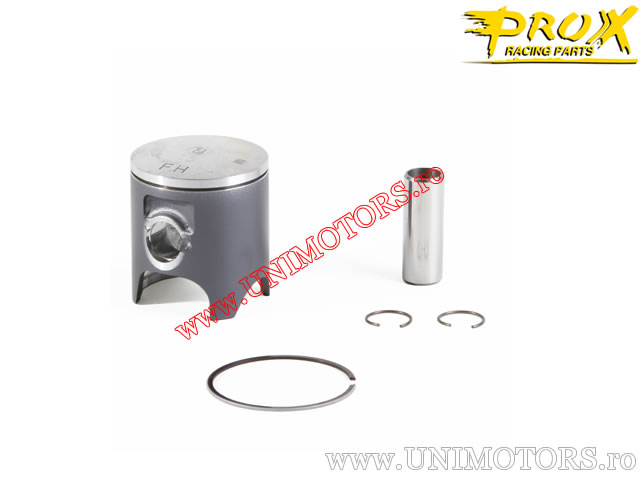

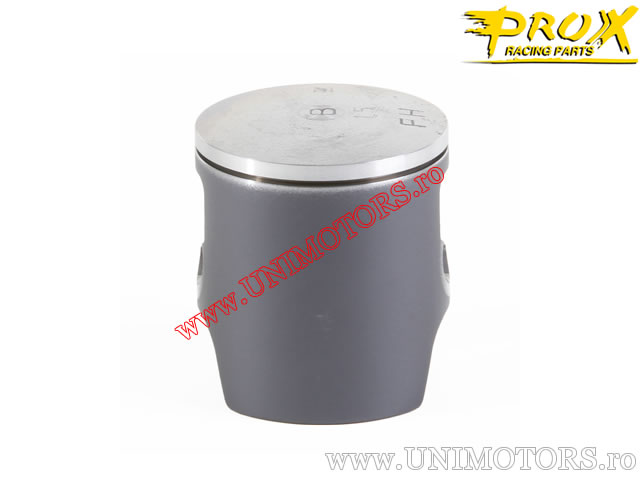

ProX piston kit for Honda CR 85 R manufactured between 2003-2007 - 85cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 47.50 mm
- engine type: 2 stroke
- total piston length (B): 53.00 mm
- piston pin diameter (C): 14.00 mm
- compression height (D): 17.00 mm
- pin ring position measured from center (E): -
- pin ring position measured from center (F): 12.00 mm
- internal distance of piston pin (G): 16.00 mm

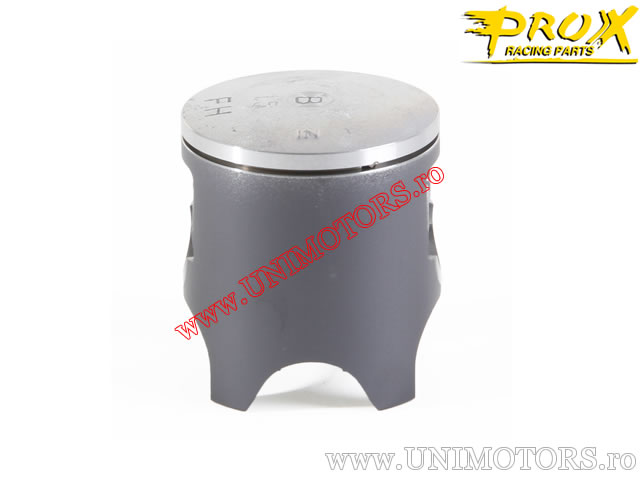

- piston crown shape: domed
- manufacturing technology: cast piston - coated with molybdenum disulfide (MoS2)

Available piston sizes (A):
- B (47.45 mm)
- C (47.46 mm)
