Piston Kit - Honda CR 125 R ('05-'07) - 125 2T - ProX

from 103,53 EUR shipping costs Product code: PROX.01.1225.x

Please select the piston size from the box above.

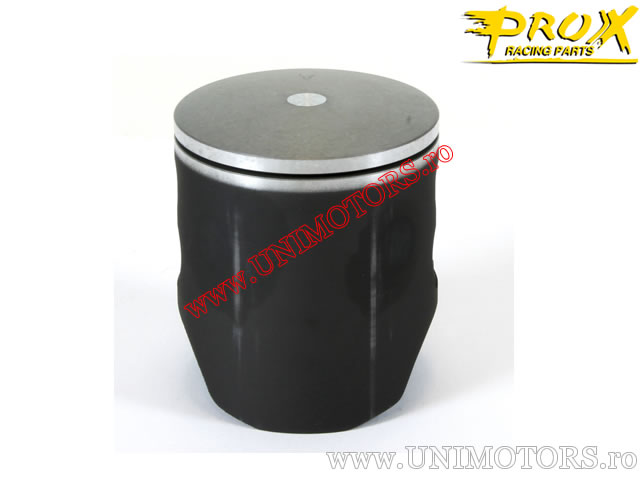

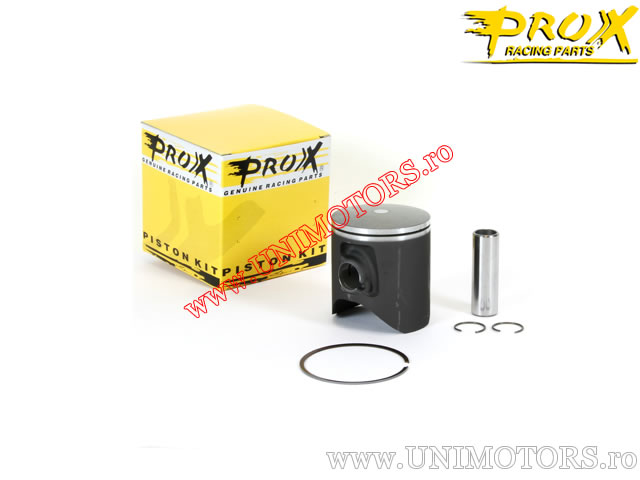

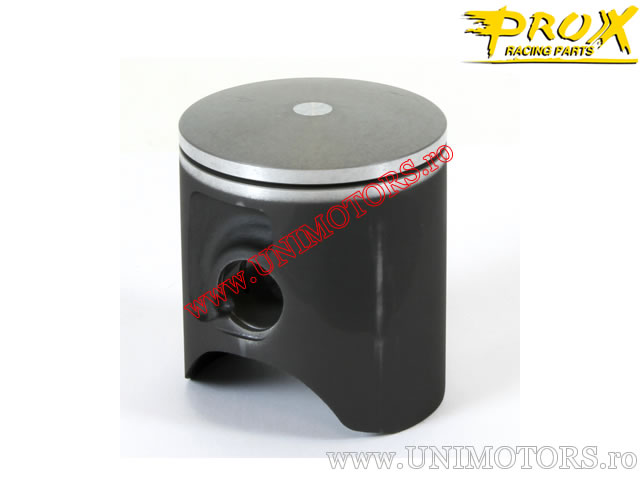

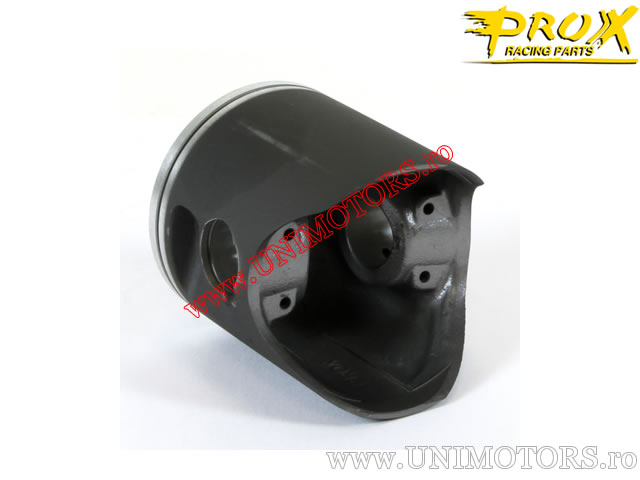

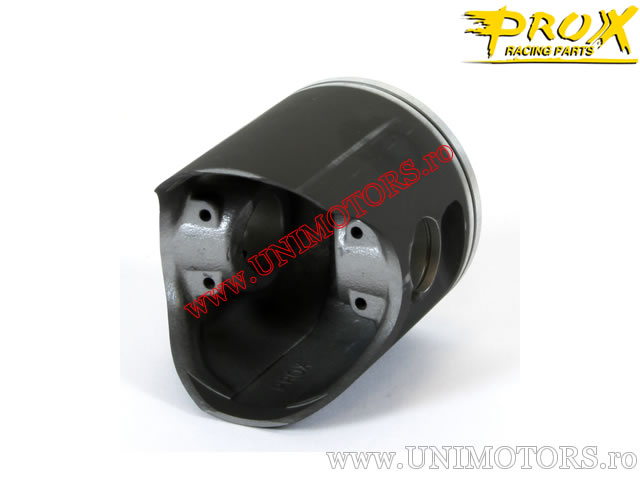

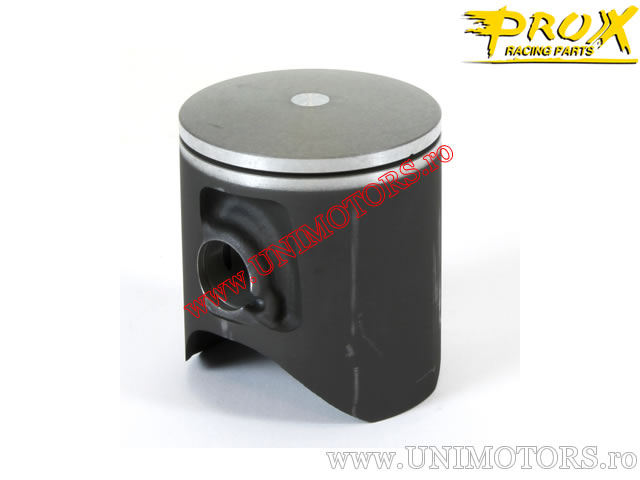

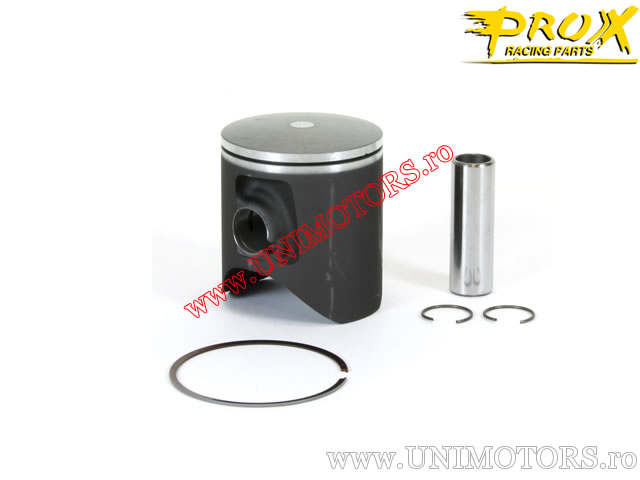

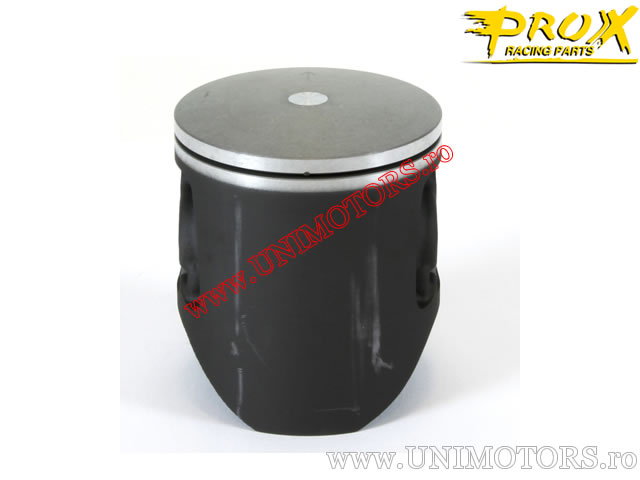

ProX piston kit for Honda CR 125 R manufactured between 2005-2007 - 125cc 2T. The complete application list can be found below.

Technical specifications:
- standard cylinder diameter (factory diameter): 54.00 mm
- engine type: 2 stroke
- total piston length (B): 62.00 mm
- piston pin diameter (C): 15.00 mm
- compression height (D): 20.50 mm
- pin ring position measured from center (E): 0.00 mm
- pin ring position measured from center (F): -
- internal distance of piston pin (G): 18.00 mm
- piston head shape: domed
- manufacturing technology: cast piston coated with molybdenum disulfide (MoS2)

Available piston sizes (A):
- A (53.94 mm)
- B (53.95 mm)
- C (53.96 mm)
- D (53.97 mm)
