Kit piston - Beta RR 450 Enduro ('10-'14) - 450 4T - ProX

from 195,51 EUR shipping costs Product code: PROX.01.7412.x

Please select the piston size from the box above.

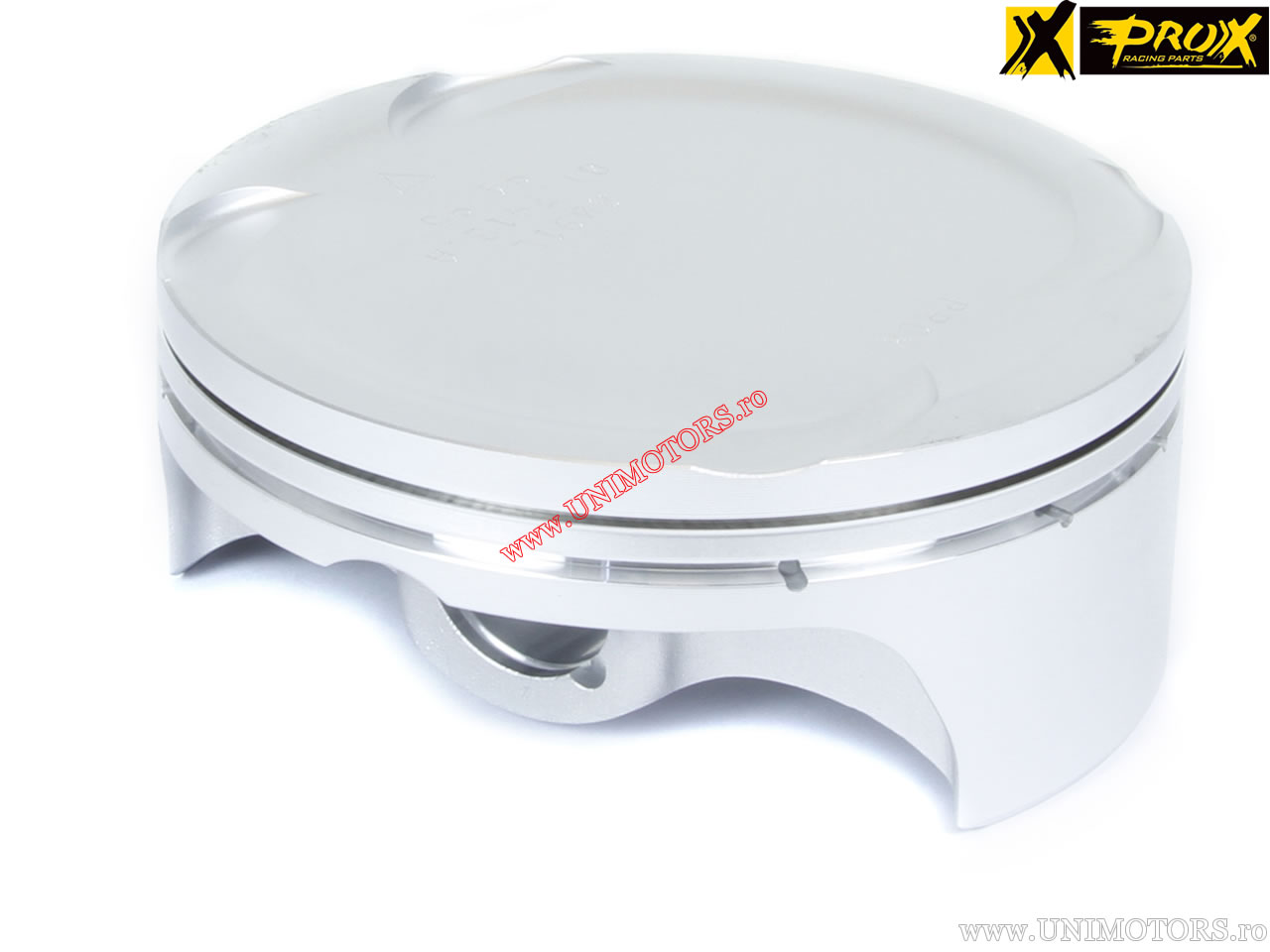

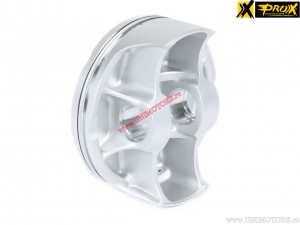

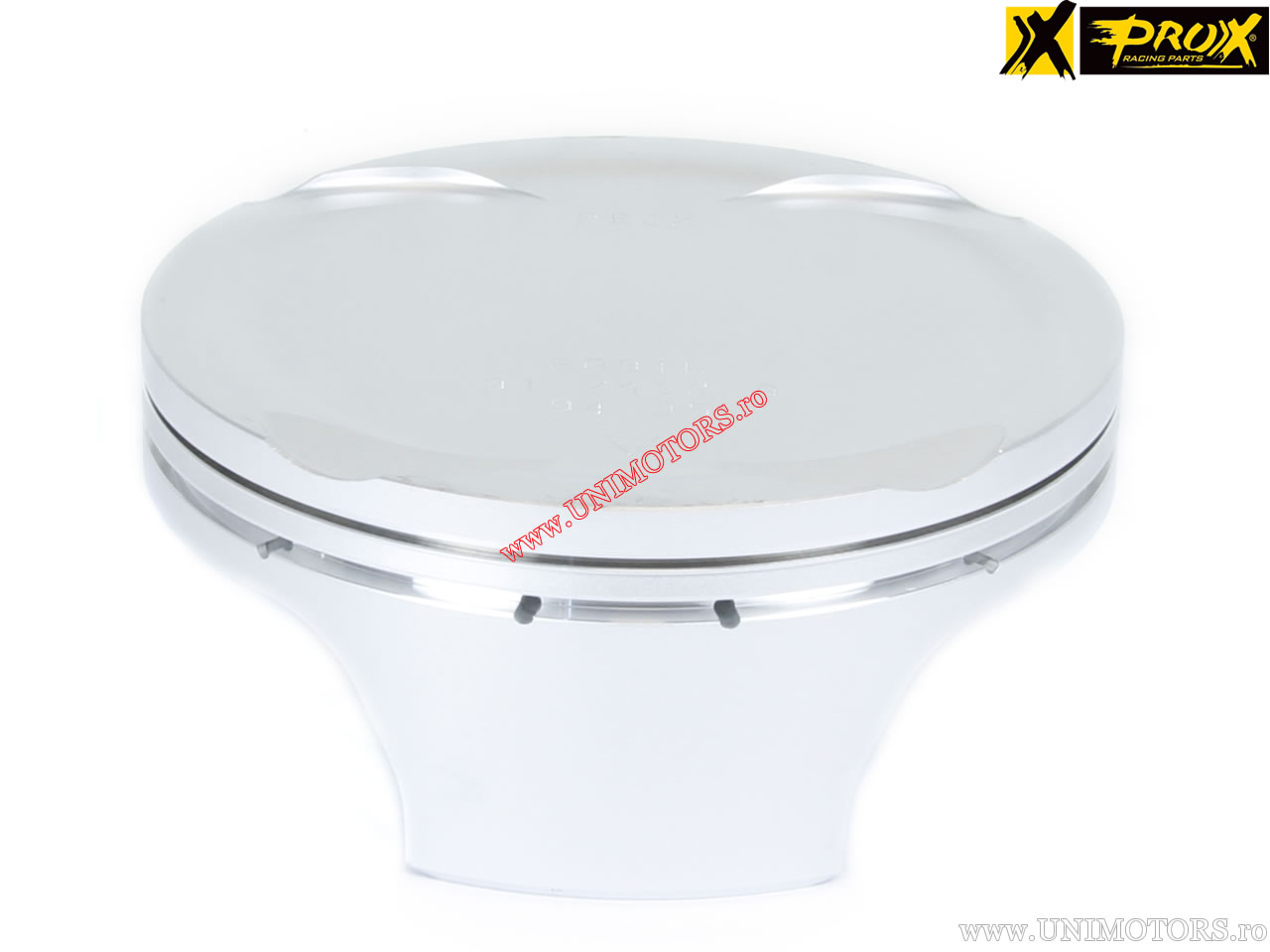

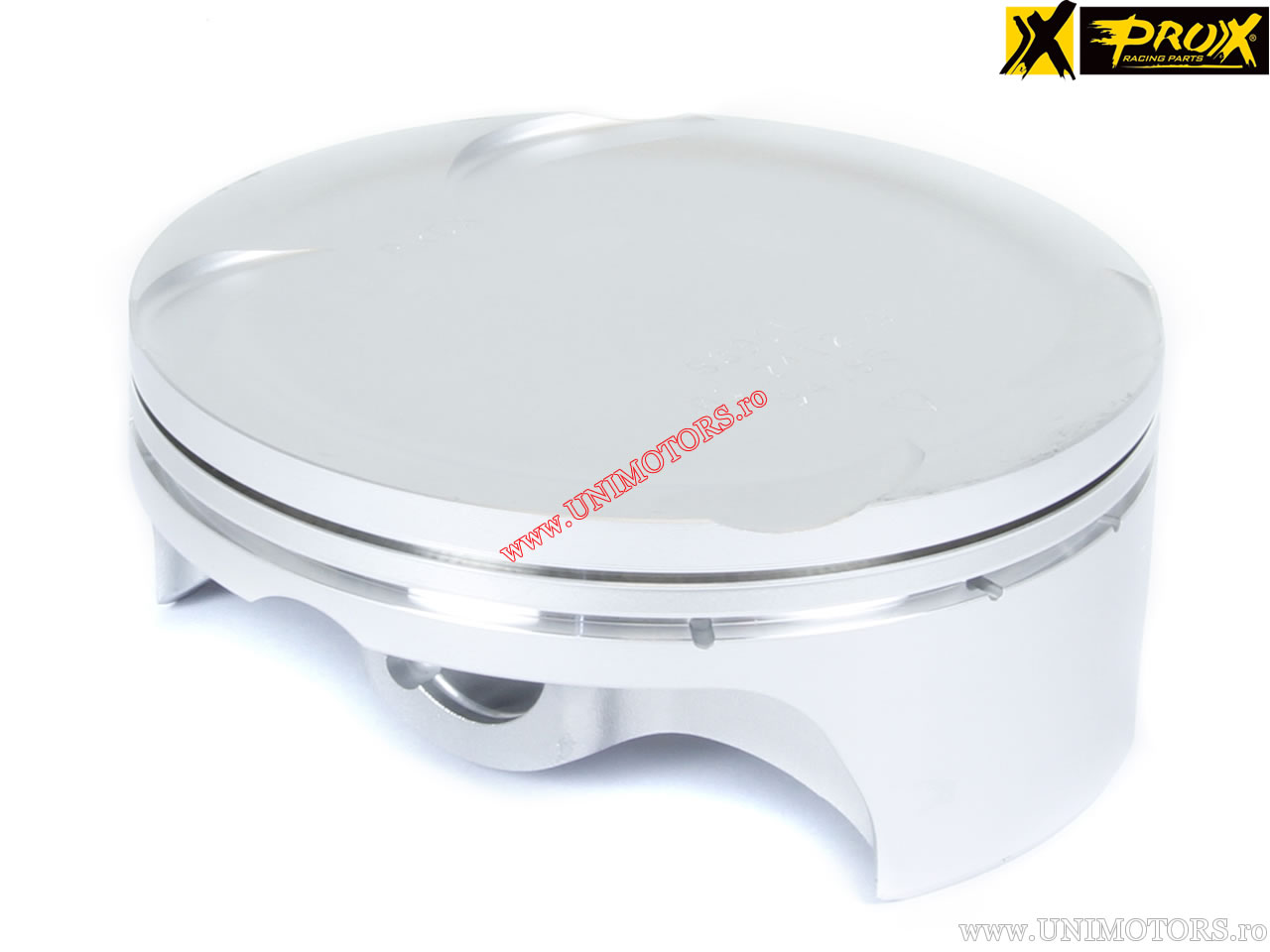

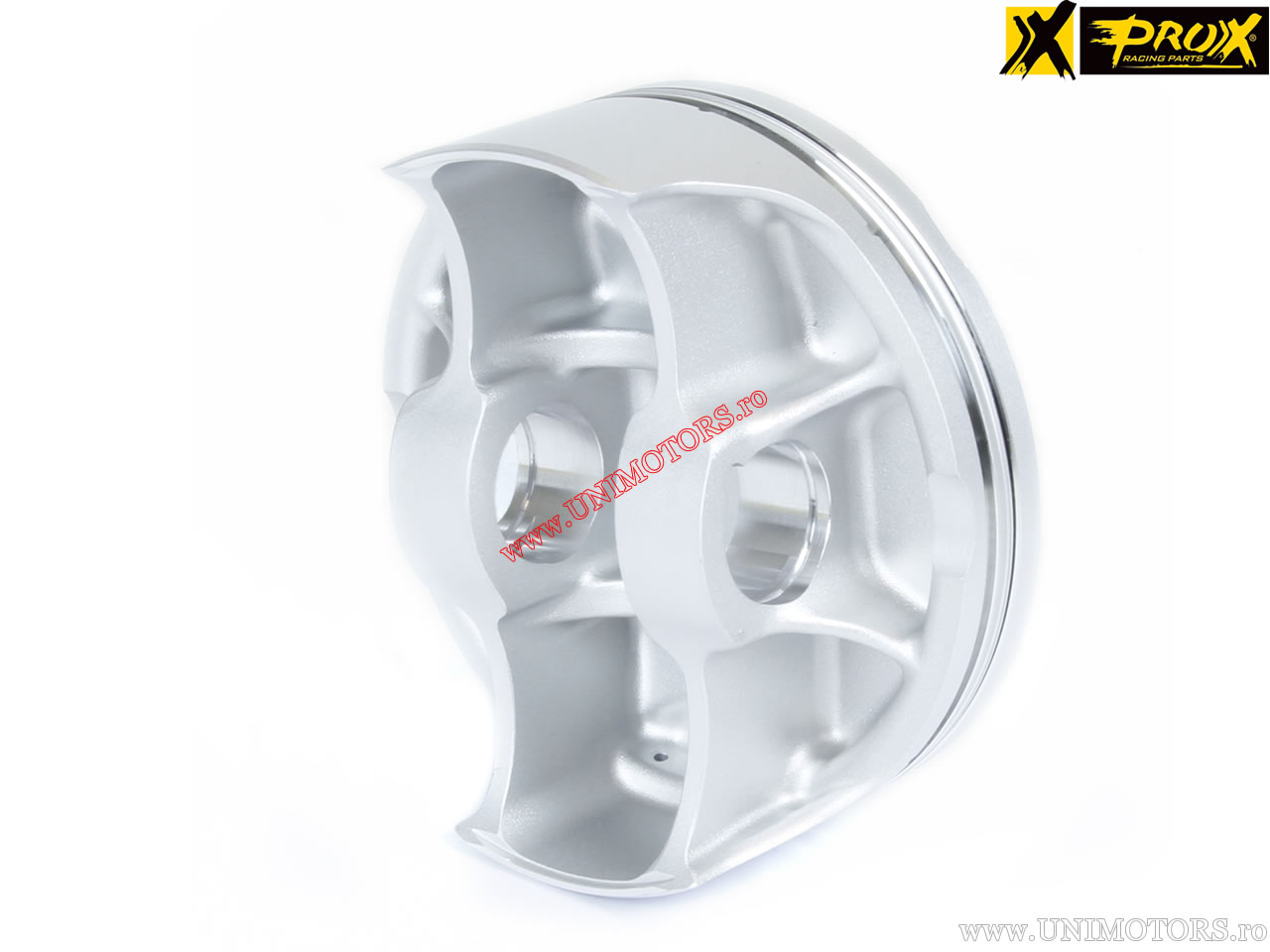

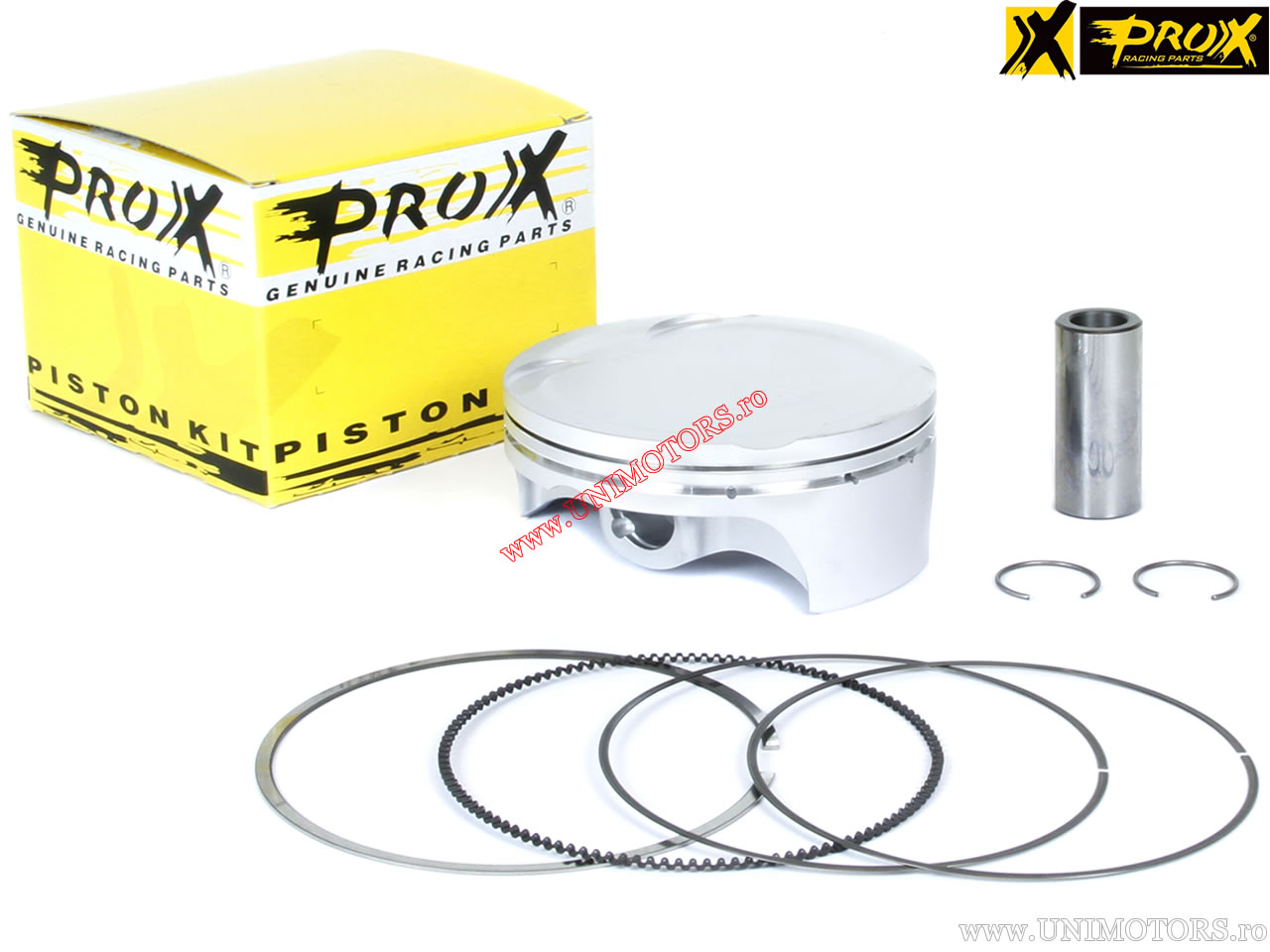

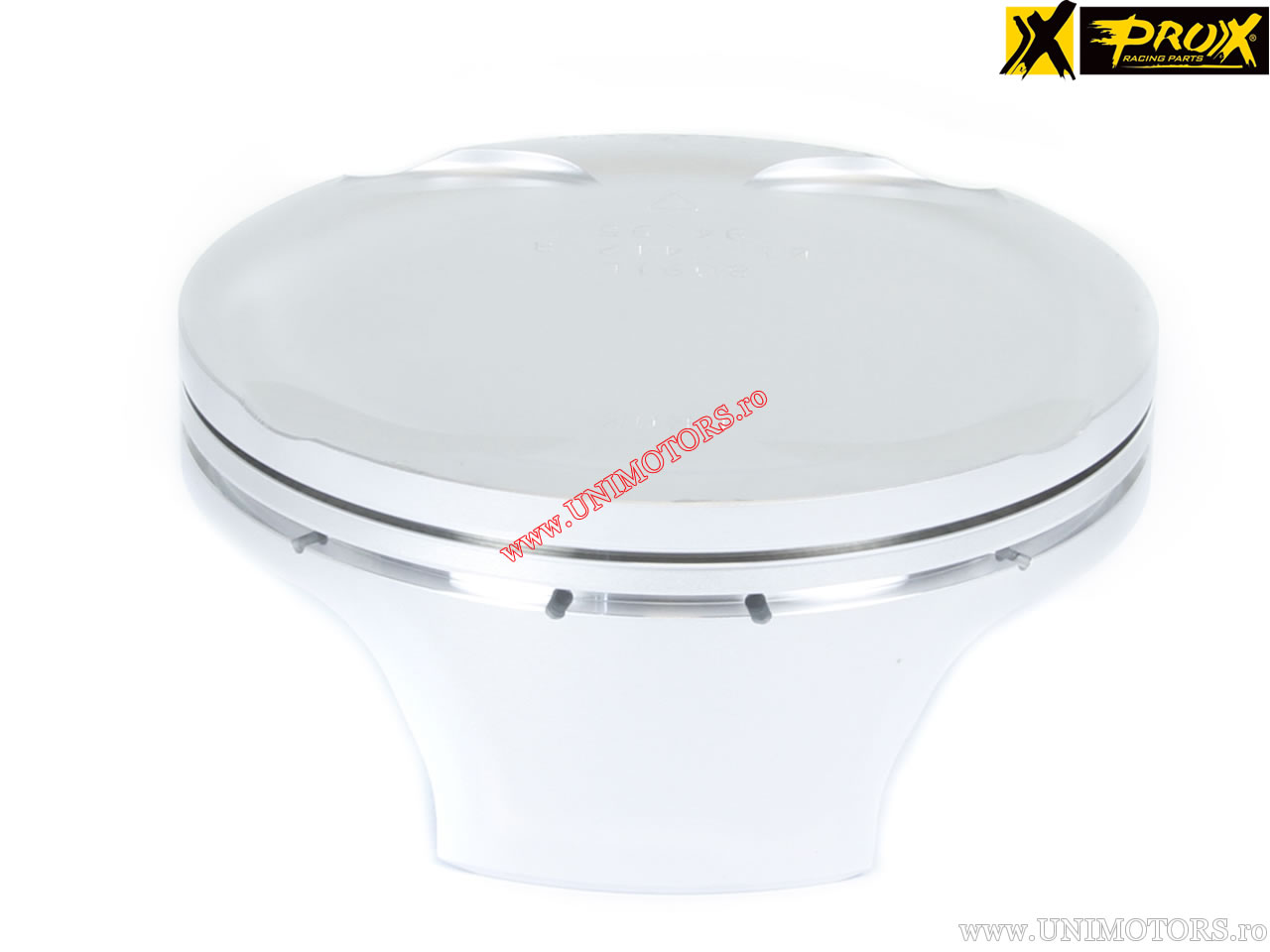

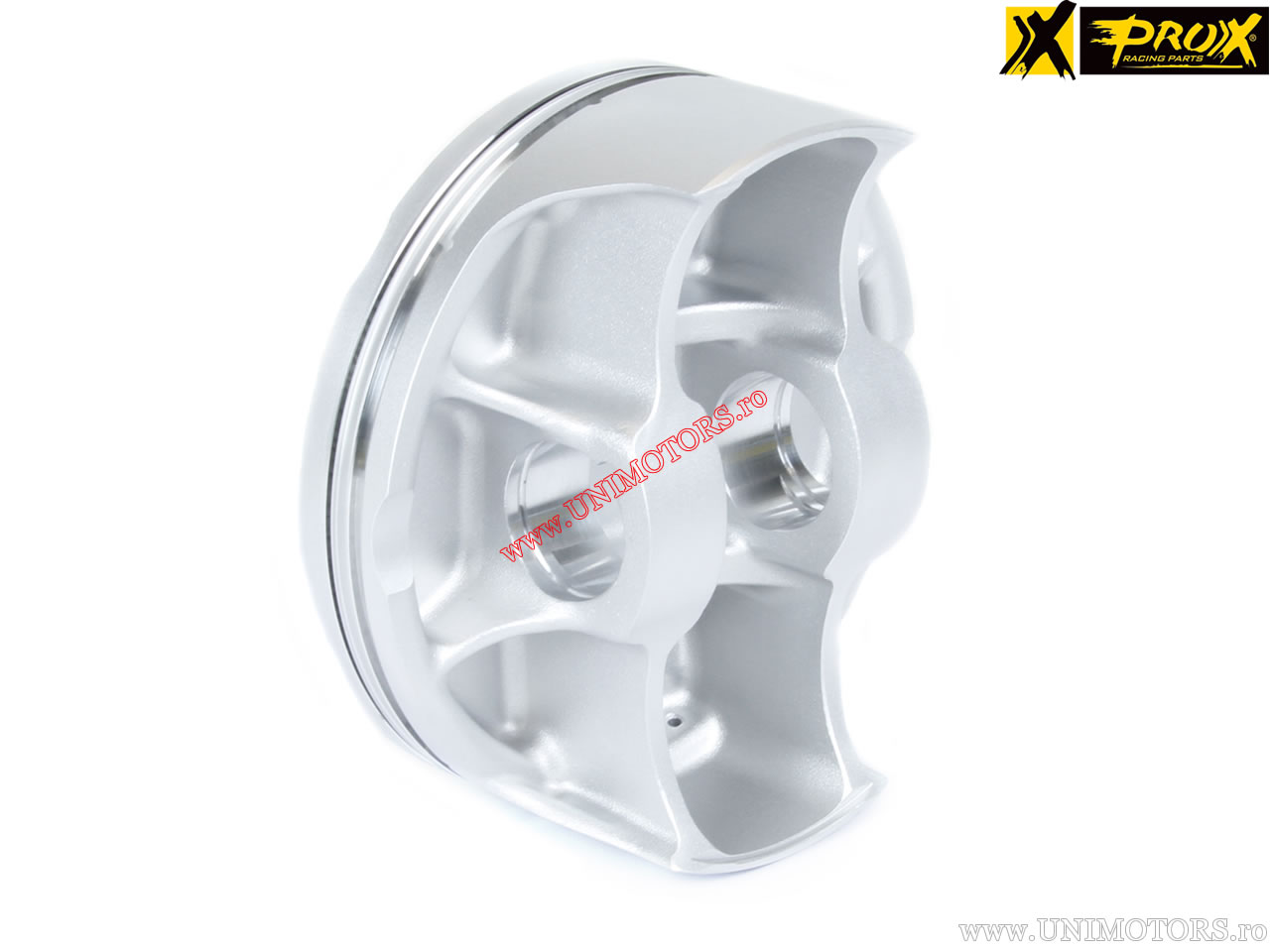

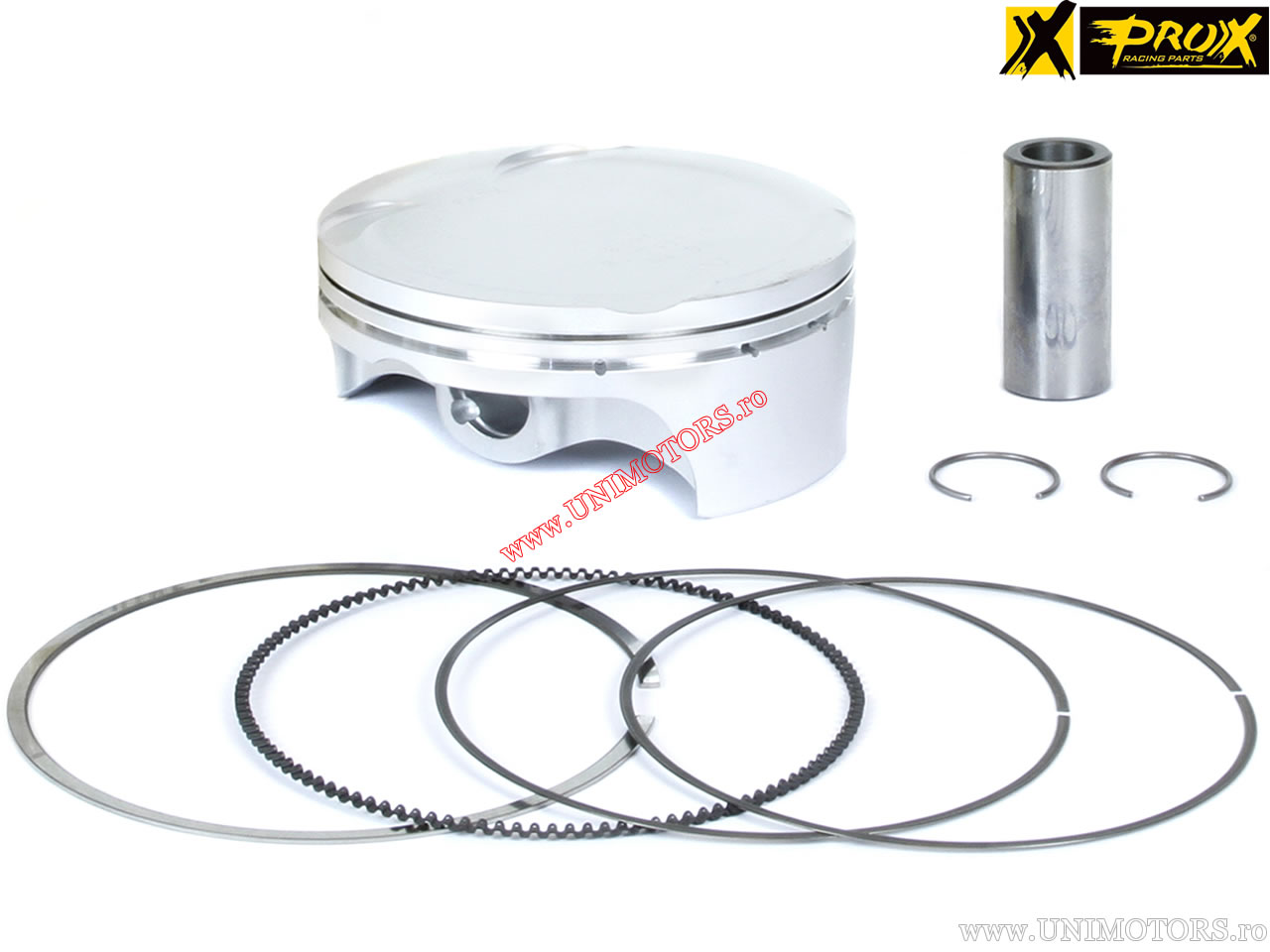

ProX piston kit for Beta RR 450 Enduro (2010-2014) - 450cc 4T. The complete application list can be found below.

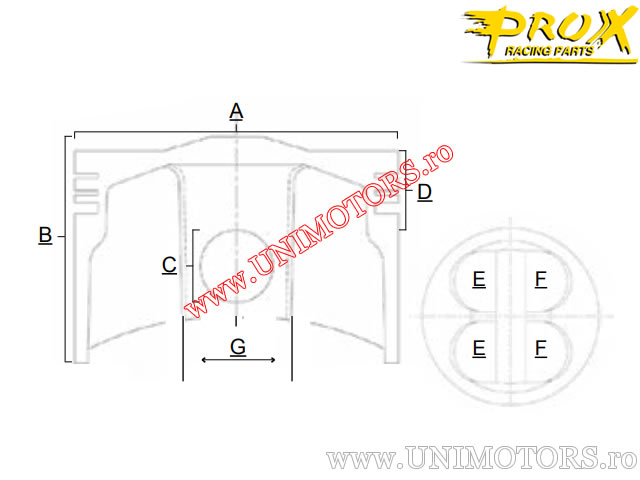

Technical specifications:
- standard cylinder diameter (factory diameter): 95.00 mm
- engine type: 4-stroke
- total piston length (B): 39.50 mm
- piston pin diameter (C): 20.00 mm
- compression height (D): 13.50 mm
- pin groove position measured from center (E):
- pin groove position measured from center (F):
- internal distance of piston pin (G): 22.40 mm
- piston head shape: flat with recessed center
- additional information: 4 x valve pockets
- manufacturing technology: forged piston

Available piston sizes (A):
- A (94.95 mm)
- B (94.96 mm)
- C (94.97 mm)
