Front pinion JTF429.12 (pitch 420) - JM

5,25 EUR shipping costs Product code: JMT.7260500

Steel front sprocket -JTF429.12 pitch 420 and 12 teeth.

Specifications:
- JT Sprockets' production is today the largest and most modern manufacturing unit for sprockets and gears worldwide;
- equipped, among others, with the latest generation of CNC manufacturing machines;
- JT Sprockets produces the entire range of sprockets and gears for aftermarket and original equipment;
- each sprocket and gear goes through 25 production stages, subjected to more than ten individual quality checks to successfully complete production;
- JT Sprockets produces correctly: through turning, milling, and drilling;
- this is the only way to achieve the highest quality, with the smallest tolerances and the best tooth profile;
- after subsequent heat treatment, each item is manually inspected;
- JT Sprockets sets new quality standards in the motorcycle industry;

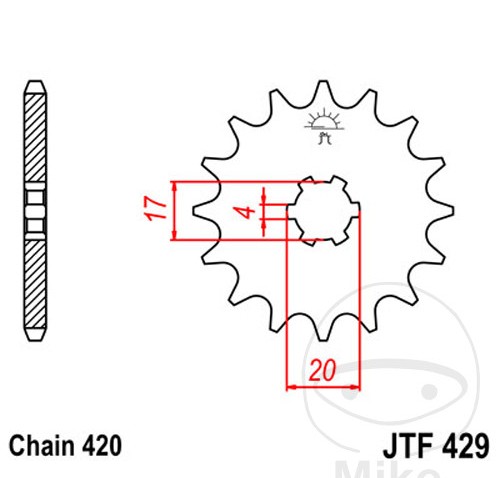

Technical data:
- Chain pitch: 420;
- Mounting: large groove;
- Minimum inner diameter: 17 mm;
- Maximum inner diameter: 20 mm;
- Inner teeth (number of teeth): 6;
- Inner tooth (distance): 4 mm;
- Number of mounting holes: none;
- Execution: standard;
- Manufacturer: JT;
- Number of teeth: 12.

The complete application list can be found below.
