Connecting rod kit - Yamaha YZ 65 ('18-'20) - ProX

96,18 EUR shipping costs Product code: PROX.03.2018

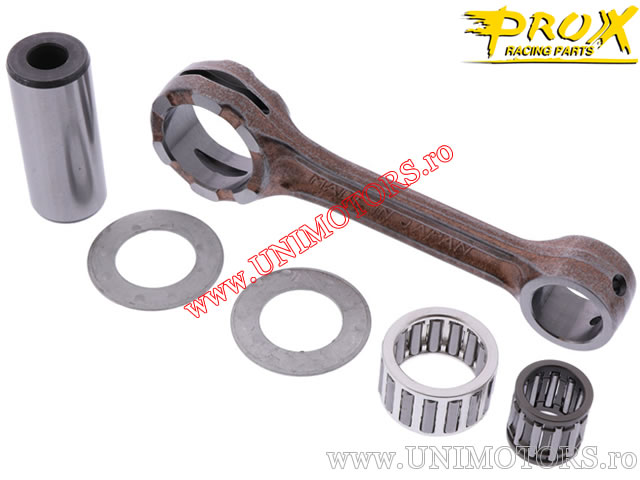

ProX connecting rod kit for Yamaha YZ 65 (2018-2020).

Dimensions:
- dimension A - upper diameter: 16.00 mm
- dimension B - lower diameter: 24.00 mm
- dimension C - distance between bolt centers: 90.00 mm
- dimension D - upper width: 14.00 mm
- dimension E - lower width: 14.00 mm
- dimension F - total length: 117.75 mm
- dimension G - inner length: 70.00 mm
- dimension H - lower bolt diameter: 18.00 mm
- dimension I - lower bolt length: 43.30 mm
- washers: 18x31x1.00 mm

Made in Japan.
