Connecting rod kit - Suzuki TS 125 ER / RM 125 ('81) - ProX

85,47 EUR shipping costs Product code: PROX.03.3005

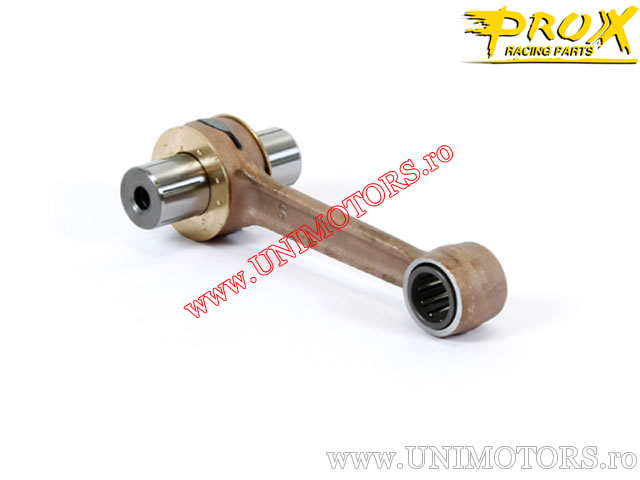

ProX connecting rod kit for Suzuki TS 125 ER / RM 125 (1981).

Dimensions:
- dimension A - upper diameter: 18.00 mm
- dimension B - lower diameter: 25.00 mm
- dimension C - distance between bolt centers: 100.00 mm
- dimension D - upper width: 18.00 mm
- dimension E - lower width: 16.00 mm
- dimension F - total length: 129.60 mm
- dimension G - inner length: 78.50 mm
- dimension H - lower bolt diameter: 19.00 mm
- dimension I - lower bolt length: 56.00 mm
- washers: 19x34.50x1.00 mm

Made in Japan.
