Connecting rod kit - Kawasaki KX 250 F ('12-'16) - ProX

140,91 EUR shipping costs Product code: PROX.03.4342

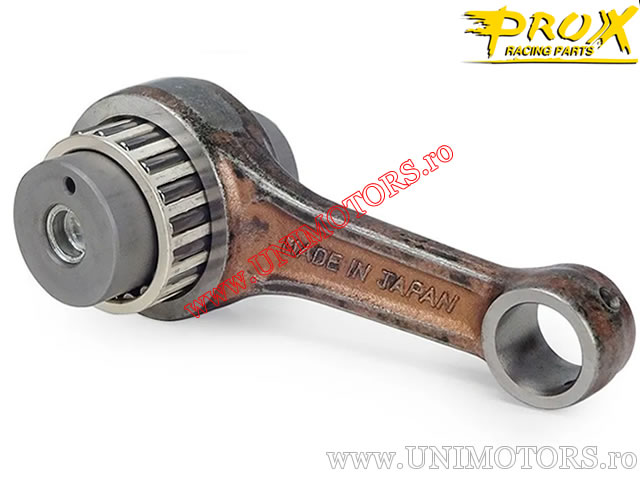

ProX connecting rod kit for Kawasaki KX 250 F (2012-2016).

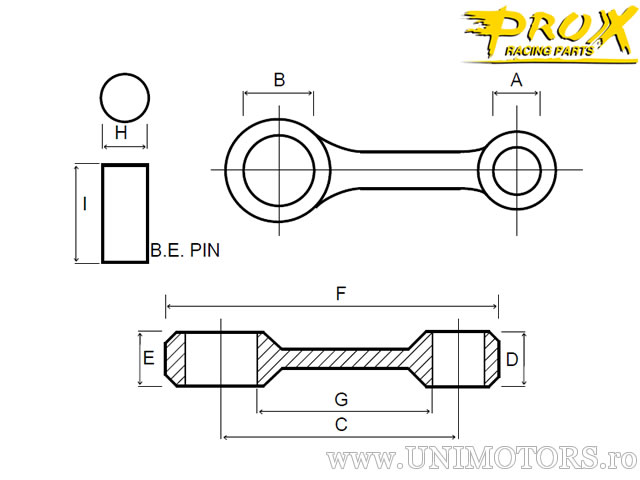

Dimensions:
- dimension A - upper diameter: 16.00 mm
- dimension B - lower diameter: 38.00 mm
- dimension C - distance between bolt centers: 92.50 mm
- dimension D - upper width: 15.00 mm
- dimension E - lower width: 19.00 mm
- dimension F - total length: 129.10 mm
- dimension G - inner length: 65.50 mm
- dimension H - lower bolt diameter: 30.00 mm
- dimension I - lower bolt length: 55.85 mm
- washers: none

Made in Japan.
