Connecting rod kit - Kawasaki KMX 125 - ProX

101,43 EUR shipping costs Product code: PROX.03.4250

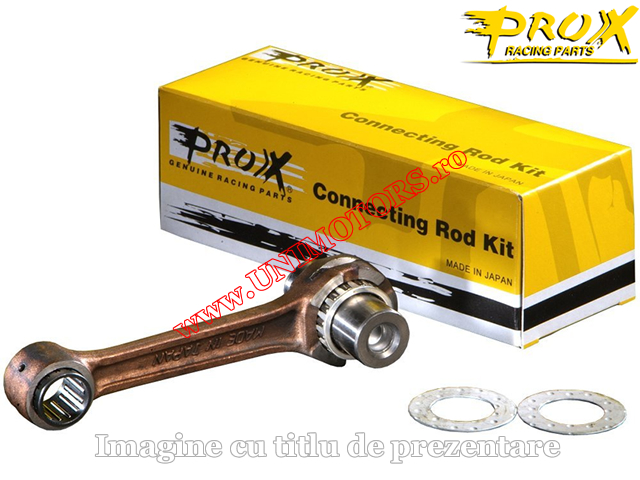

ProX connecting rod kit for Kawasaki KMX 125.

Dimensions:
- dimension A - upper diameter: 21.00 mm
- dimension B - lower diameter: 29.00 mm
- dimension C - distance between bolt centers: 106.00 mm
- dimension D - upper width: 17.00 mm
- dimension E - lower width: 17.00 mm
- dimension F - total length: 142.00 mm
- dimension G - inner length: 81.00 mm
- dimension H - lower bolt diameter: 22.00 mm
- dimension I - lower bolt length: 54.00 mm
- washers: 22x37x1.00 mm

Made in Japan.
