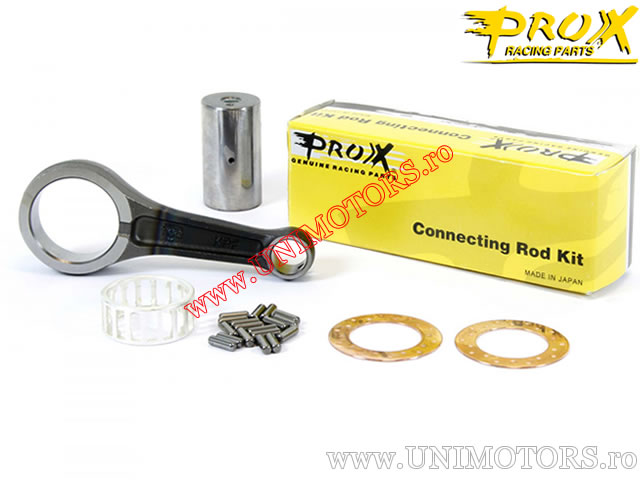

Connecting rod kit - Honda CBF 250 ('04-'07) / XR 250 Tornado ('01-'12) - ProX

113,61 EUR shipping costs Product code: PROX.03.1358

ProX connecting rod kit for Honda CBF 250 (2004-2007) / XR 250 Tornado (2001-2012).

Dimensions:
- dimension A - upper diameter: 17.00 mm
- dimension B - lower diameter: 41.00 mm
- dimension C - distance between bolt centers: 102.50 mm
- dimension D - upper width: 17.80 mm
- dimension E - lower width: 17.80 mm
- dimension F - total length: -
- dimension G - inner length: 73.50 mm
- dimension H - lower bolt diameter: 32.00 mm
- dimension I - lower bolt length: 58.00 mm
- washers: 32x50x1.00 mm

Made in Japan.
