Connecting Rod Kit - Yamaha YFZ 450 ('06-'09) - ProX

167,58 EUR shipping costs Product code: PROX.03.2436

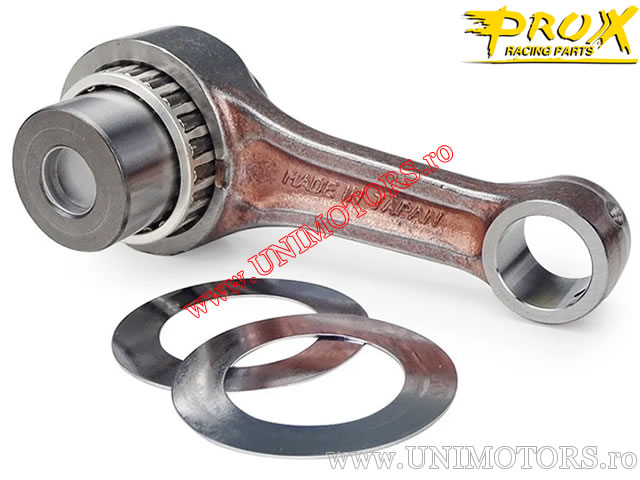

ProX connecting rod kit for Yamaha YFZ 450 (2006-2009).

Dimensions:
- dimension A - upper diameter: 20.00 mm
- dimension B - lower diameter: 42.00 mm
- dimension C - distance between bolt centers: 101.50 mm
- dimension D - upper width: 18.00 mm
- dimension E - lower width: 21.00 mm
- dimension F - total length: 142.70 mm
- dimension G - inner length: 70.50 mm
- dimension H - lower bolt diameter: 34.00 mm
- dimension I - lower bolt length: 60.75 mm
- washers: 34x54x0.50 mm (not used on models from 2006 and 2007)

Made in Japan.
