Connecting Rod Kit - Yamaha RD 250 LC / RD 350 LC ('80-'83) - ProX

85,47 EUR shipping costs Product code: PROX.03.2020

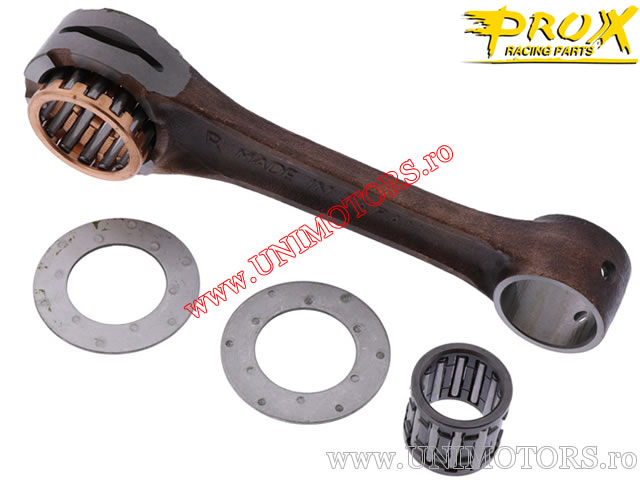

ProX connecting rod kit for Yamaha RD 250 LC / RD 350 LC (1980-1983).

Dimensions:
- dimension A - upper diameter: 21.00 mm
- dimension B - lower diameter: 29.00 mm
- dimension C - distance between bolt centers: 110.00 mm
- dimension D - upper width: 18.00 mm
- dimension E - lower width: 16.00 mm
- dimension F - total length: 143.00 mm
- dimension G - inner length: 85.00 mm
- dimension H - lower bolt diameter: -
- dimension I - lower bolt length: -
- washers: 22x37x1.00 mm
- note: does not include lower bolt

Made in Japan.
