Charging relay (voltage regulator) universal - 12V 35A (7 wires - SCR technology) - DZE

114,45 EUR shipping costs Product code: DZE.REG10185

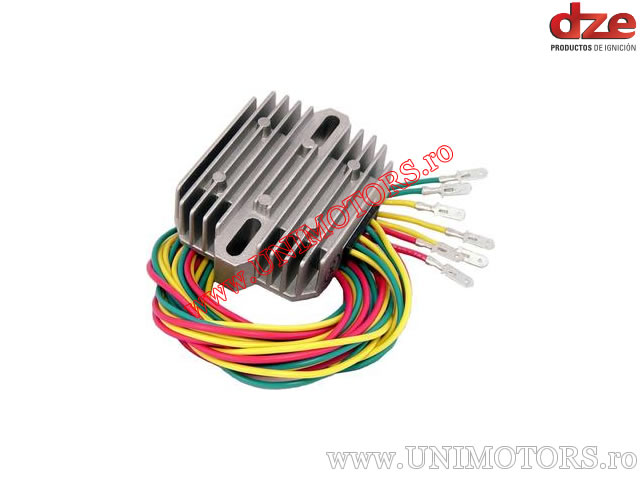

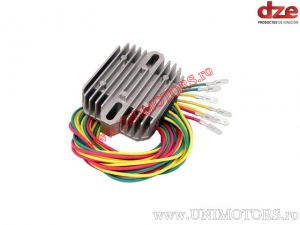

Charging relay (voltage regulator) from DZE Argentina adaptable, with 7 wires, based on SCR technology for a 12V electrical system and a maximum current of 35A. It comes with the plugs and connectors shown in the image.

Technical specifications
- voltage: 12 V
- power: 35 A
- input current: three-phase

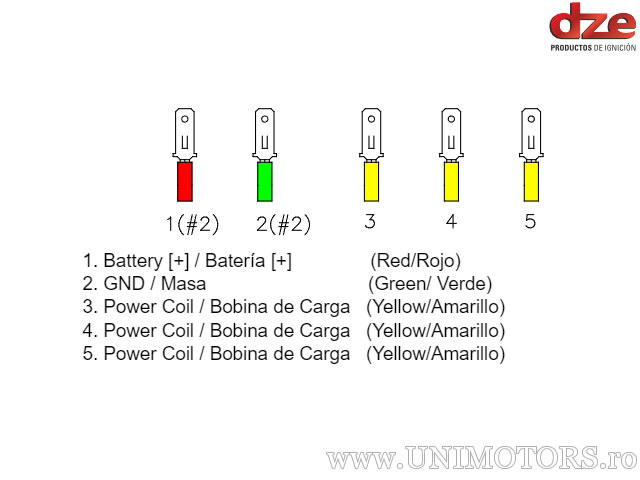

- number of wires: 7 - (2 x red / 2 x green / 3 x yellow)
- technology: SCR
- output type: direct current (D.C.)
- height: 29 mm
- width: 80 mm
- length: 108 mm
- hole spacing: 76 mm
- with sensor: no
