Charging Relay - Honda CMX C 250 ('01-'09) / CMX 250 C ('12-'16) - DZE

99,75 EUR shipping costs Product code: DZE.REG2524

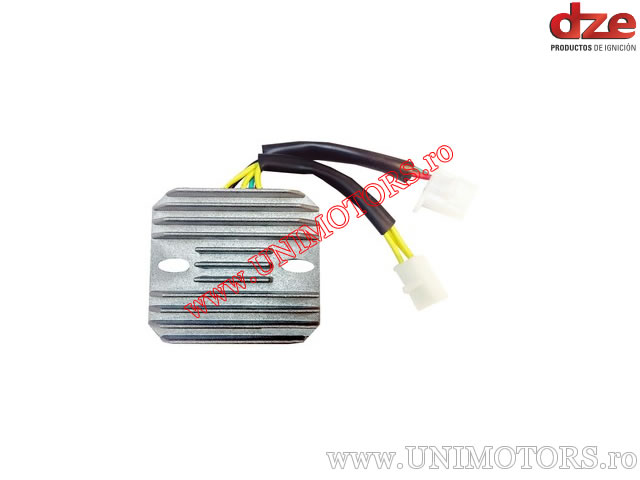

Charging relay (voltage regulator) from DZE Argentina equivalent to Shindengen SH535C-13 for Honda CMX C 250 (2001-2009) / CMX 2A / 3AC 250 (2015-2016) / CMX C 250 (2012-2014).

OEM part reference: 31600-KEN-A51 / 31600KENA51.

Technical specifications
- voltage: 12 V
- power: 25 A
- input current: three-phase
- technology: SCR
- output type: direct current (D.C.)
- height: 28 mm
- width: 70 mm
- length: 80 mm
- hole spacing: 60 mm
- with sensor: no
