Charging Relay - Honda CBR XX 1100 ('01-'03) - DZE

135,45 EUR shipping costs Product code: DZE.REG2488

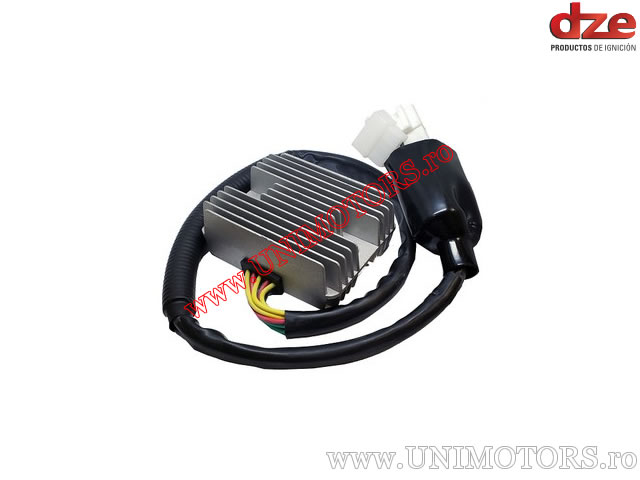

Charging relay (voltage regulator) from DZE Argentina equivalent to Shindengen SH689A-12 for Honda CBR XX 1100 (2001-2003).

OEM part reference: 31600-MAT-D51.

Technical specifications
- voltage: 12 V
- power: 35 A
- input current: three-phase
- technology: SCR
- output type: direct current (D.C.)
- height: 41 mm
- width: 84 mm
- length: 108 mm
- hole spacing: 80 mm
- with sensor: yes
