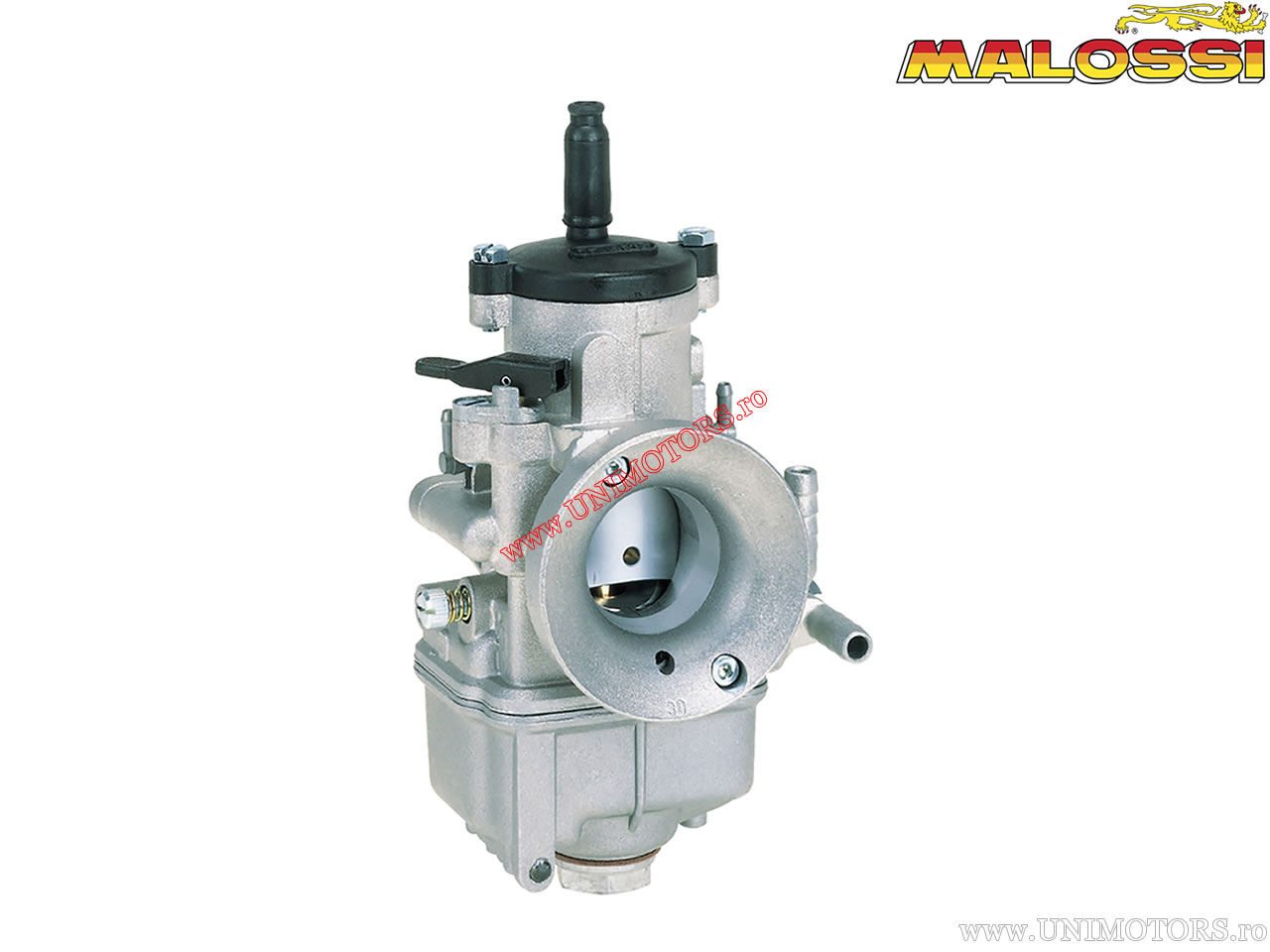

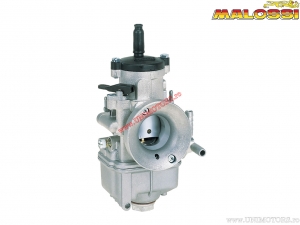

Carburetor Dellorto PHBE 30 HS - Malossi

300,30 EUR shipping costs Product code: MA.A06808

Carburetor Dellorto PHBE 30 HS Malossi.

- Independent starting circuit;
- Idle system with adjustment screw for the jet and mixture;
- Main circuit with mechanical mixture adjustment via conical needle;
- Versions with mixture adjustment screw on the right and/or left;
- Chamber with the possibility of mounting independent floats;
- Sleeve connection with insulating reducer from Ø 45 to Ø 42 and Ø 40 and flexible mounting connector Ø 45;
- Air intake connector Ø 48 - Ø 64 and Ø M48 x 1.25 for assembling joints;
- Material: housing made of die-cast zinc alloy (zinc, aluminum, magnesium, and copper);
- Engine: 125cc, 2-stroke;
- Application: kart;
- Venturi diameter: 30 - 32 - 34 - 36 - 38 mm;
- Diameter: 30 mm;
- Type: PHBE.

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We disclaim any responsibility for improper use.
