Carburetor Dellorto FHCD 20 16 (A07396) - Malossi

100,38 EUR shipping costs Product code: MA.A07396

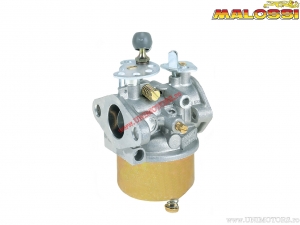

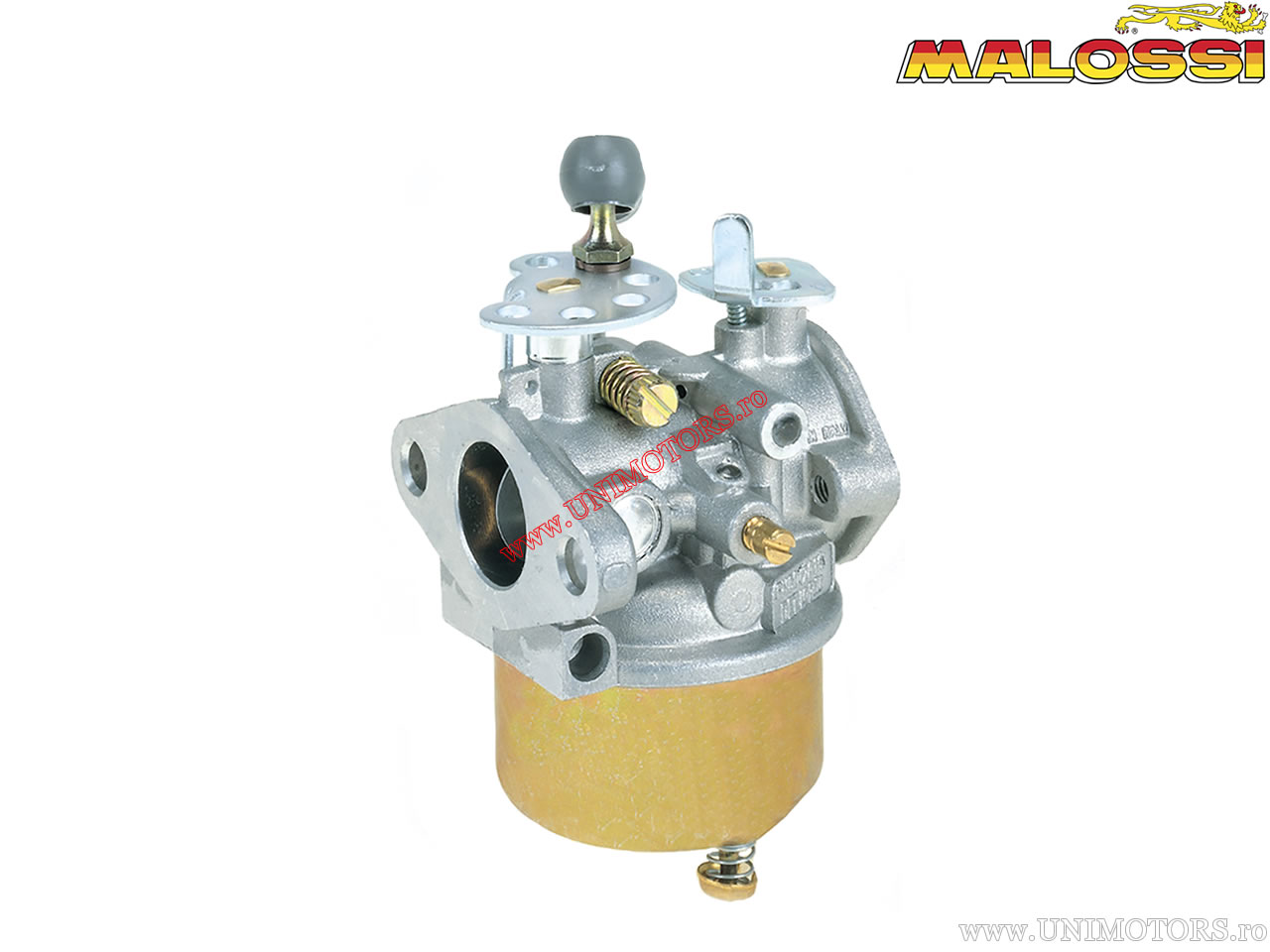

Carburetor Dellorto FHCD 20 16 Malossi.

- Throttle valve with vertical axis;
- Starter with throttle valve;
- Idle circuit derived from main with adjustment screw for jet and mixture;
- Main circuit with emulsification jet located centrally;
- Float chamber with ring float and purge switch;
- Engine flange connection with a horizontal distance of 46 mm between centers;
- Air intake flange connection with a horizontal distance of 35 mm between centers;
- Engine: 50-250cc, 2-4 stroke;
- Application: industrial;
- Venturi diameter: 11 - 13 - 16 - 18 mm;
- Barrel diameter: 20 - 22 mm;
- Type: FHCD.

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We disclaim any responsibility for improper use.
